Automatic Palletizers

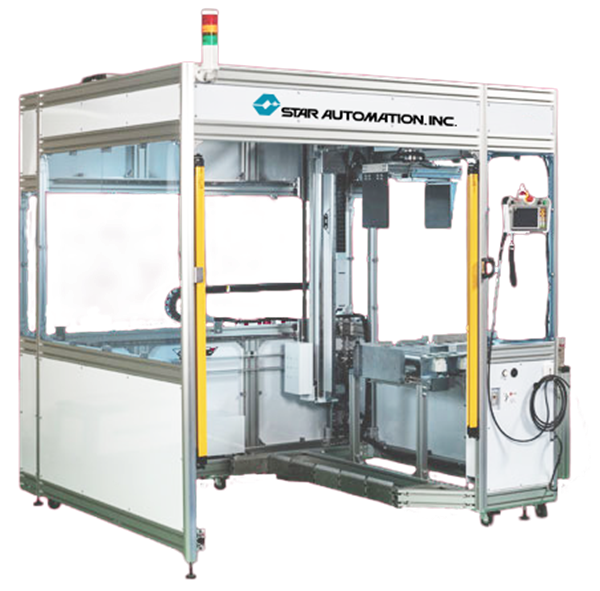

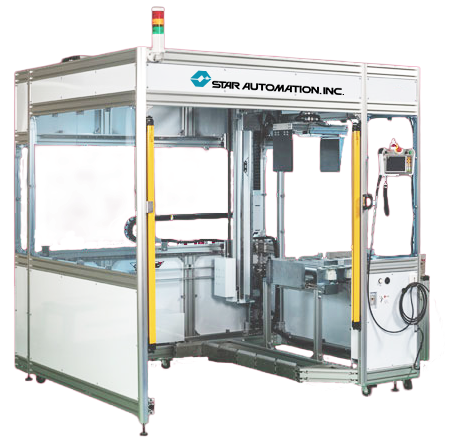

Star Automation’s Robotic Palletizer Series (PXT, PXL, and PXW) provides automated stacking solutions designed to maximize efficiency, reduce manual labor, and streamline logistics. With compact designs engineered for low ceiling heights and flexible layouts, these palletizers are built to adapt to modern production environments.
Other features include:
- Logistics Efficiency: Reduce downtime, improve shipping and receiving systems, and increase overall throughput.
- Compact Installation: Engineered for facilities with low ceilings and limited space.
- Flow Line Compatibility: Straight-line pallet flow allows for efficient operation even when handling multiple pallets.
- User-Friendly Controls: Easy operation via intuitive touch panels and controllers.
- Labor Optimization: Reallocate human labor to higher-value tasks, maximizing workforce effectiveness.
Robotic Palletizer Benefits
Integrating robotic palletizers into your production line provides measurable benefits, including:
- Increased Productivity: Process up to 8–10 boxes per minute depending on the model.
- Versatile Applications: Suitable for food, pharmaceutical, beverage, cosmetics, and other industries.
- Space Savings: Requires significantly less floor space than articulated robots while maintaining high payload capacity.
- Adaptability: Easily redeployed or repositioned to meet evolving plant layouts and production needs.
- Reliable Automation: Consistent, precise palletizing reduces errors and enhances downstream operations.
Palletizer Specs
| PXT series | PXW series | PXL series | |||||
|---|---|---|---|---|---|---|---|

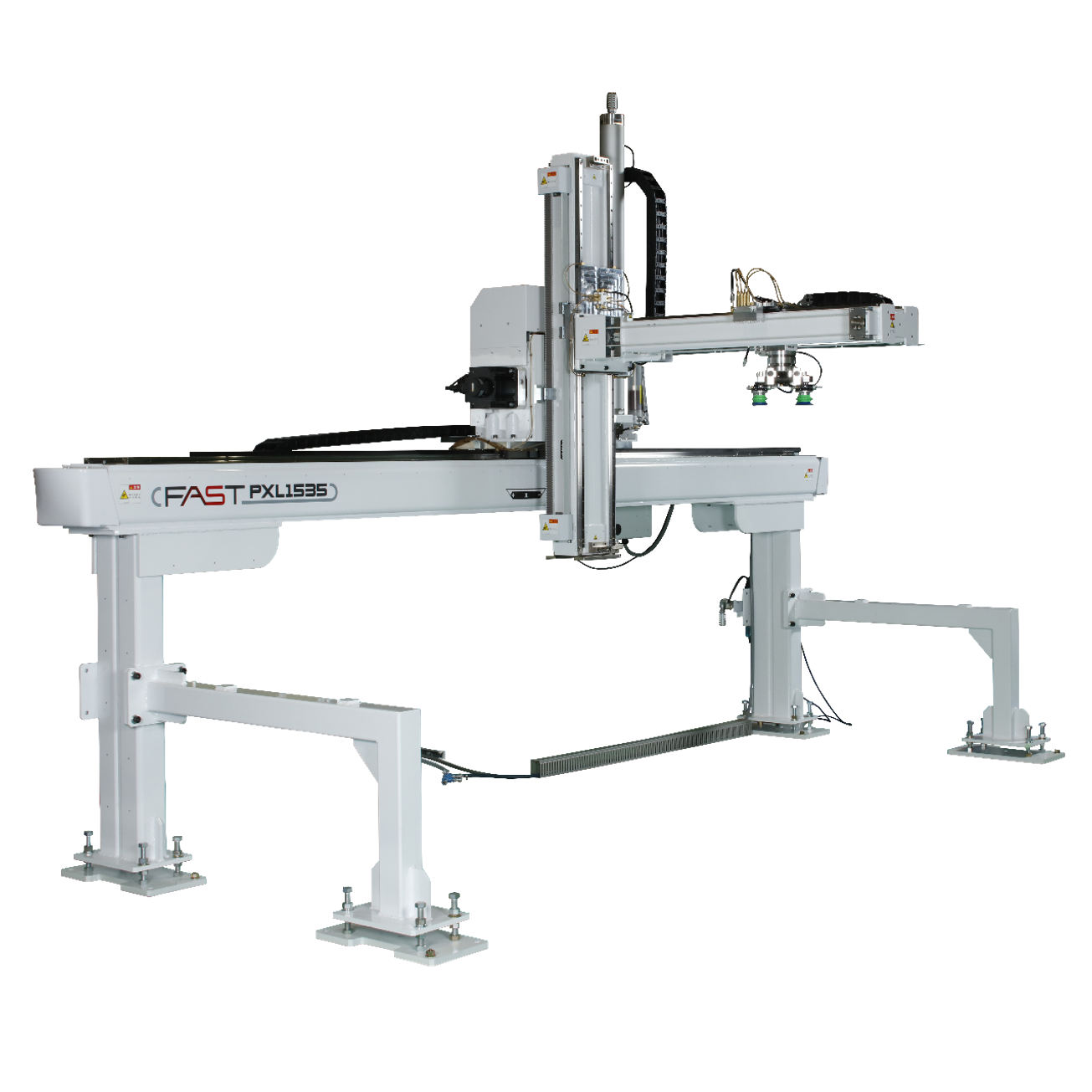

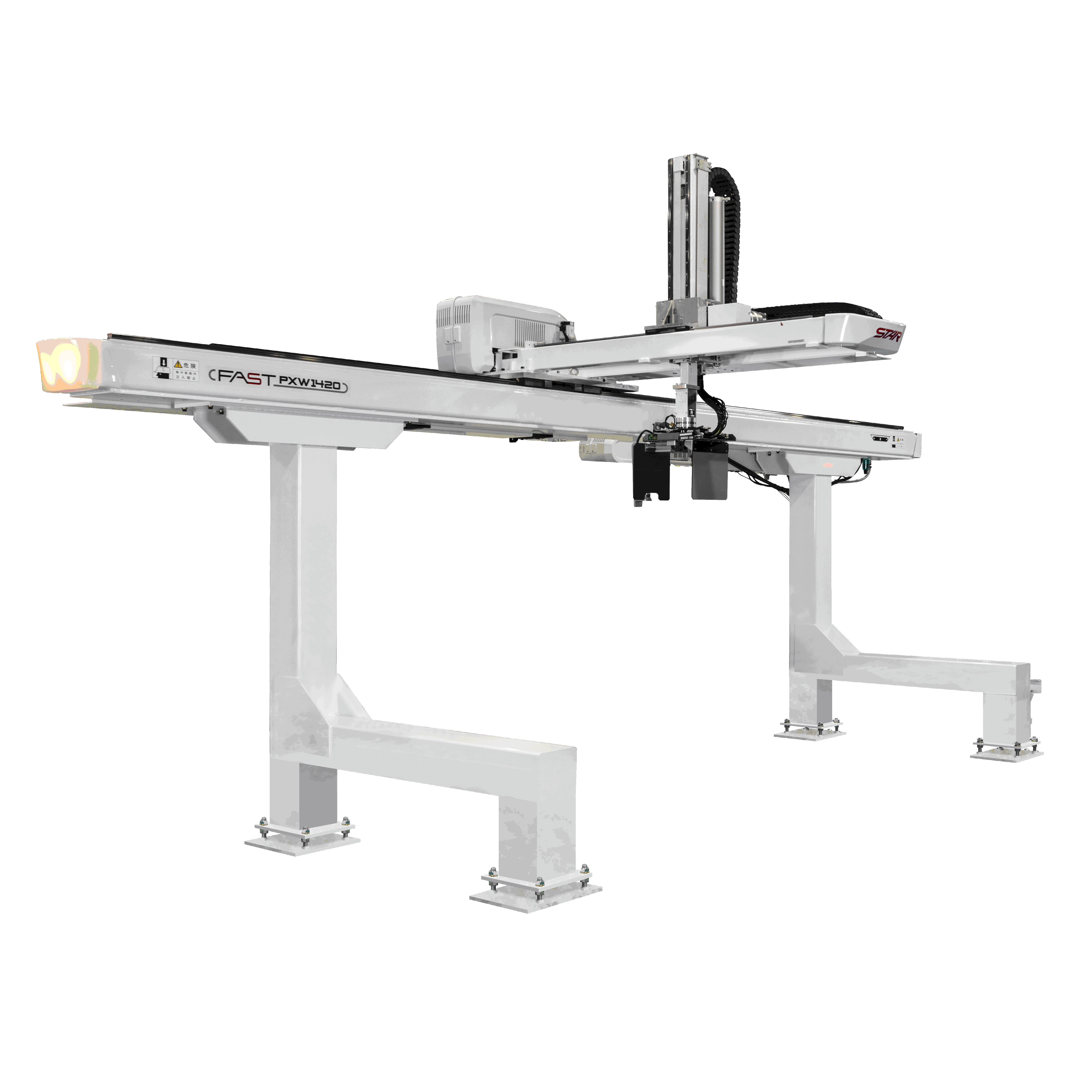

| PXT-1220A | PXT-1220+ | PXT-1235 | PXW-1420 | PXW-1535 | PXW-1550 | PXL-1535 | |
| Normal air pressure [MPa] |
0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max. payload (Including robot hand weight) [kg] |
20 | 20 | 35 | 20 | 35 | 50 | 35 |
| Vertical axis () OP [mm] |
1200 (1400) (1700) |
1200 (1400) (1700) |
1200 | 1400 (1200) (1800) |
1500 (1800) (2000) |
1500 (1800) (2000) |
1500 (1800) (2300) |
| Crosswise axis () OP [mm] |
900 (1000) |
1000 | 1000 | 1000 (700) |
1000 (1200) |
1250 (1550) |
1000 (1350) |
| Traverse axis () OP [mm] |
1500 | 1800 | 1400 | 3500 (4500) (5500) |
3500 (4500) (5500) |
3500 (4500) (5500) |
3500 (4500) (5500) |
| Swivel axis () OP [Degrees] |
±160 | ±160 | 320 (±160) | 320 (±160) | 320 (±160) | 320 (±160) | ±160 |
| Power supply | 200 – 220 VAC ±10% 50/60 Hz | ||||||
| Power supply equipment capacity [KVA] |
2.1 | 2.1 | 8.9 | 5.5 | 5.7 | 7.9 | 8.9 |
| Max. power consumption [KW] |
1.2 | 1.2 | 4.6 | 2.9 | 3.0 | 4.1 | 4.5 |
| Breaker capacity [A] |
15 | 15 | 30 | 20 | 20 | 30 | 30 |
| Main unit air consumption [L/min] |
15.2 | 15.2 | 163.8 | 91.5 | 119.8 | 211.4 | 103 |
| Main unit weight [kg] |
487 | 518 | 1044 | 1093 | 1100 | 1287 | 1445 |
