All Robots/Conveyors
View Full Image
Model Length Belt Width Height Working Electric Power Speed Max. Flat Conveyable Weight Total Weight
SEC2000-3CCB 6’ 6” / 2000mm 11.8” / 300mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 110 lbs / 50 kg 90 lbs / 41 kg
SEC2000-4CCB 6’ 6” 2000mm 15.8” / 400mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 110 lbs / 50 kg 97 lbs / 44 kg
SEC2000-5CCB 6’ 6” 2000mm 19.7” / 500mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 121 lbs / 55 kg 103 lbs / 47 kg
SEC2000-6CCB 6’ 6” 2000mm 23.6” / 600mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 121 lbs / 55 kg 110 lbs / 50 kg
SEC3000-3CCB 9’ 10” 3000mm 11.8” / 300mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 110 lbs / 50 kg 103 lbs / 47 kg
SEC3000-4CCB 9’ 10” 3000mm 15.8” / 400mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 121 lbs / 55 kg 112 lbs / 51 kg
SEC3000-5CCB 9’ 10” 3000mm 19.7” / 500mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 121 lbs / 55kg 121 lbs / 55 kg
SEC3000-6CCB 9’ 10” 3000mm 23.6” / 600mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 132 lbs / 60kg 128 lbs / 58 kg
SEC4000-3CCB 13’ 1” 4000mm 11.8” / 300mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 121 lbs / 55kg 141 lbs / 64 kg
SEC4000-4CCB 13’ 1” 4000mm 15.8” / 400mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 121 lbs / 55kg 152 lbs / 69 kg
SEC4000-5CCB 13’ 1” 4000mm 19.7” / 500mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 132 lbs / 60 kg 163 lbs / 74 kg
SEC4000-6CCB 13’ 1” 4000mm 23.6” / 600mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 132 lbs / 60kg 172 lbs / 78 kg
SEC5000-3CCB 16’ 5” 5000mm 11.8” / 300mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 121 lbs / 55kg 152 lbs / 69 kg
SEC5000-4CCB 16’ 5” 5000mm 15.8” / 400mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 132 lbs / 60kg 165 lbs / 75 kg
SEC5000-5CCB 16’ 5” 5000mm 19.7” / 500mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 132 lbs / 60kg 176 lbs / 80 kg
SEC5000-6CCB 16’ 5” 5000mm 23.6” / 600mm Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle AC120V (Single Phase Power Supply) 40W 10.0 ft/min 3.0m/min 143 lbs / 65kg 196 lbs / 86 kg

Conveyors

Model: SEC2000-3CCB
Length:
6’ 6” / 2000mm
Belt Width:
11.8” / 300mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
110 lbs / 50 kg
Total Weight:
90 lbs / 41 kg
Model: SEC2000-4CCB
Length:
6’ 6” 2000mm
Belt Width:
15.8” / 400mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
110 lbs / 50 kg
Total Weight:
97 lbs / 44 kg
Model: SEC2000-5CCB
Length:
6’ 6” 2000mm
Belt Width:
19.7” / 500mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
121 lbs / 55 kg
Total Weight:
103 lbs / 47 kg
Model: SEC2000-6CCB
Length:
6’ 6” 2000mm
Belt Width:
23.6” / 600mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
121 lbs / 55 kg
Total Weight:
110 lbs / 50 kg
Model: SEC3000-3CCB
Length:
9’ 10” 3000mm
Belt Width:
11.8” / 300mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
110 lbs / 50 kg
Total Weight:
103 lbs / 47 kg
Model: SEC3000-4CCB
Length:
9’ 10” 3000mm
Belt Width:
15.8” / 400mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
121 lbs / 55 kg
Total Weight:
112 lbs / 51 kg
Model: SEC3000-5CCB
Length:
9’ 10” 3000mm
Belt Width:
19.7” / 500mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
121 lbs / 55kg
Total Weight:
121 lbs / 55 kg
Model: SEC3000-6CCB
Length:
9’ 10” 3000mm
Belt Width:
23.6” / 600mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
132 lbs / 60kg
Total Weight:
128 lbs / 58 kg

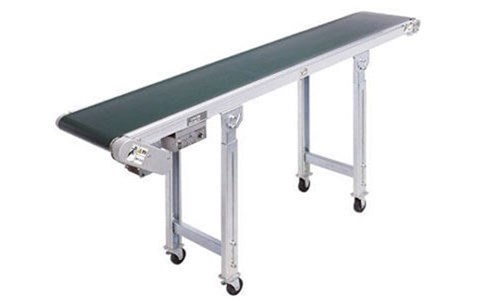

Model: SEC4000-3CCB
Length:
13’ 1” 4000mm
Belt Width:
11.8” / 300mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
121 lbs / 55kg
Total Weight:
141 lbs / 64 kg
Model: SEC4000-4CCB
Length:
13’ 1” 4000mm
Belt Width:
15.8” / 400mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
121 lbs / 55kg
Total Weight:
152 lbs / 69 kg
Model: SEC4000-5CCB
Length:
13’ 1” 4000mm
Belt Width:
19.7” / 500mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
132 lbs / 60 kg
Total Weight:
163 lbs / 74 kg
Model: SEC4000-6CCB
Length:
13’ 1” 4000mm
Belt Width:
23.6” / 600mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
132 lbs / 60kg
Total Weight:
172 lbs / 78 kg
Model: SEC5000-3CCB
Length:
16’ 5” 5000mm
Belt Width:
11.8” / 300mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
121 lbs / 55kg
Total Weight:
152 lbs / 69 kg
Model: SEC5000-4CCB
Length:
16’ 5” 5000mm
Belt Width:
15.8” / 400mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
132 lbs / 60kg
Total Weight:
165 lbs / 75 kg
Model: SEC5000-5CCB
Length:
16’ 5” 5000mm
Belt Width:
19.7” / 500mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
132 lbs / 60kg
Total Weight:
176 lbs / 80 kg
Model: SEC5000-6CCB
Length:
16’ 5” 5000mm
Belt Width:
23.6” / 600mm
Height:
Adjustable Between 35 in – 51 in 900mm – 1300mm and Adjustable Tilting Angle
Working Electric Power:
AC120V (Single Phase Power Supply) 40W
Speed:
10.0 ft/min 3.0m/min
Max. Flat Conveyable Weight:
143 lbs / 65kg
Total Weight:
196 lbs / 86 kg

Includes:

  • Variable Speed Drive
  • Indexing Control with Signal from Robot
  • 32 Foot / 10 Meter Power Cord
  • 32 Foot / 10 Meter Signal Cord

Options:

  • Aluminum Side Rails (Height: 2” / 50.8mm)
  • Aluminum Side Rails (Height: 4” / 101.6mm)
  • Foot Pedal Override
  • Belt Speed Increase (17.4’ / 5.3m per min)
