PXT-1220+ Robot Palletizer
PXT-1220+
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
 Download
|
Technical Specs:

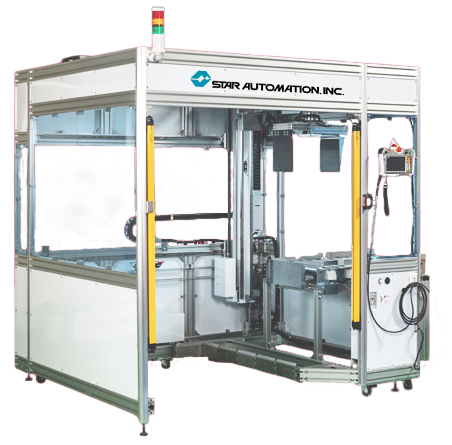

Star Automation’s PXT-1220+ robotic palletizer is designed for compact, low-height installation while delivering reliable end-of-line performance. Like other PXT Series models, the PXT-1220+ helps reduce labor demands, improve shipping and receiving systems, and maintain consistent throughput. With a cycle rate of 8–10 boxes per minute, it is well-suited for industries including food, beverages, pharmaceuticals, and cosmetics.
The PXT-1220+ supports T11–T14 pallet types, handles A3 package sizes (450 × 310 mm), and includes casters for flexible mobility across production floors. View the full specifications below:
All robotic palletizers from Star Automation include a customized implementation plan. Our engineers will assist with installation and training to ensure a seamless transition to automation. We also work with you to determine the best configuration for your operation. Standard and optional features for the PXT-1220+ are listed below:
|
Normal Air Pressure |
0.5 MPa |
|
Max. Payload |
20 kg |
|
Vertical Axis Stroke (OP) |
1200 mm |
|
Crosswise Axis Stroke (OP) |
1000 mm |
|
Traverse Axis Stroke (OP) |
1800 mm |
|
Swivel Axis (OP) |
±160° |
|
Power Supply |
200–220 VAC ±10% 50/60 Hz |
|
Power Supply Equipment Capacity |
2.1 kVA |
|
Max. Power Consumption |
1.2 kW |
|
Breaker Capacity |
15 A |
|
Main Unit Air Consumption |
15.2 L/min |
|
Main Unit Weight |
518 kg |
|
Controller |
STEC-520PB Controller |
Standard Features
- Compact design optimized for low ceilings and tight spaces
- Casters for easy movement and plant layout flexibility
- User-friendly pendant with touch panel interface
- Handles A3 size packages (450 × 310 mm)
- Supports T11–T14 pallet types
- Processes 8–10 boxes per minute
- Designed for smooth pallet flow with minimal downtime
Optional Features
- Pallet feeder for continuous operation
- Depalletizing function
- Robot hand suction system
- Servo hand option for precise handling
