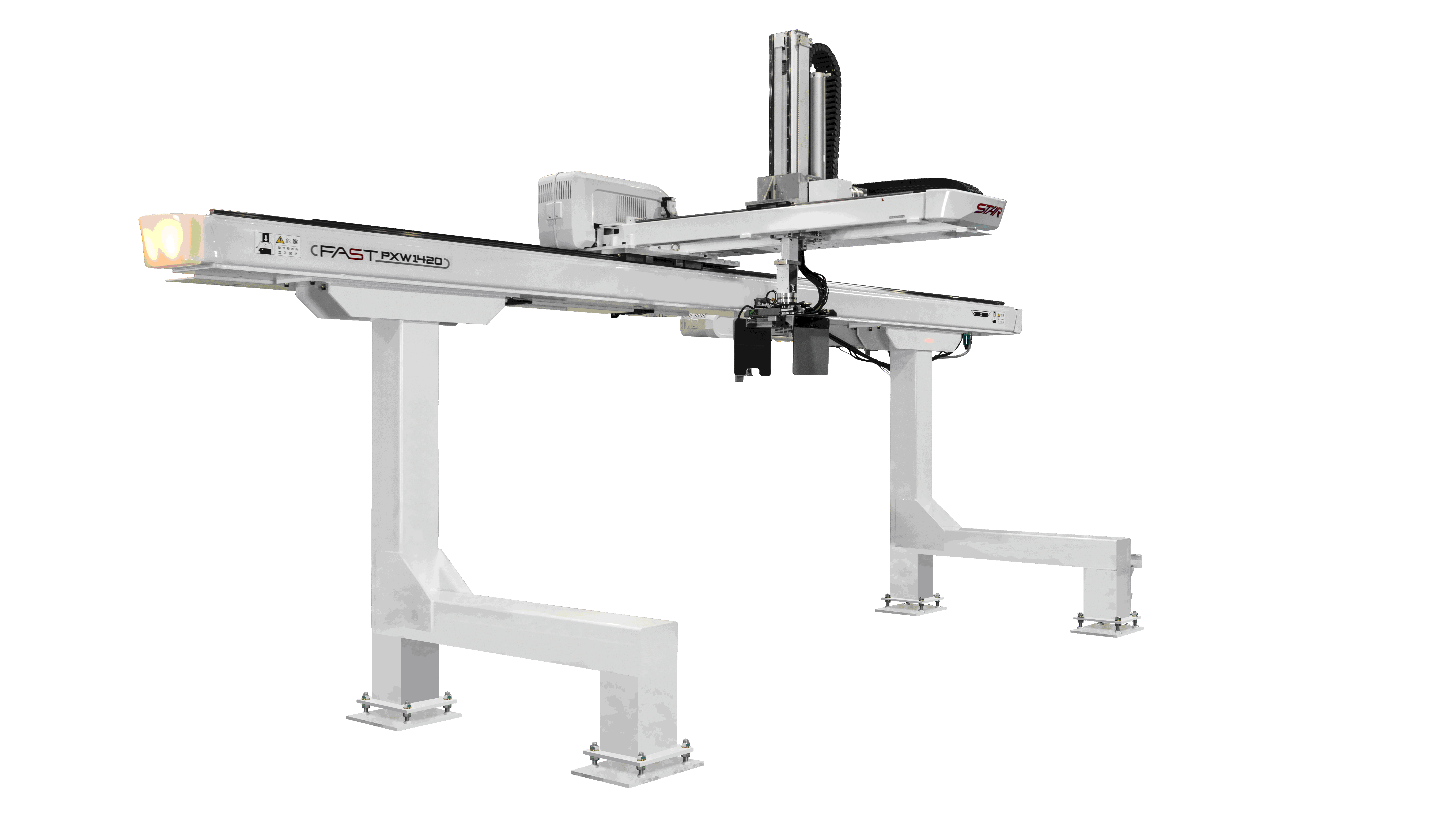

PXW-1535 Robot Palletizer
PXW-1535
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
 Download
|
Technical Specs:
Star Automation’s PXW-1535 robotic palletizer is a multi-stroke system designed to deliver high payload handling and efficient stacking in compact spaces. Built for versatility, it reduces manual labor demands, improves logistics flow, and helps achieve consistent throughput. With processing speeds of up to 10 boxes per minute, the PXW-1535 is ideal for industries such as food, beverages, pharmaceuticals, and cosmetics.
The PXW-1535 provides flexible stroke arrangements, smooth flow-line operation, and reduced space requirements compared to articulated robots. Explore the key specifications below:
All Star Automation palletizers come with a customized implementation plan. Our team provides installation support, training, and maintenance guidance to ensure seamless adoption. Standard and optional features for the PXW-1535 are listed below:
|
Normal Air Pressure |
0.5 MPa |
|
Max. Payload |
35 kg |
|
Vertical Axis Stroke (OP) |
1500 mm |
|
Crosswise Axis Stroke (OP) |
1000 mm |
|
Traverse Axis Stroke (OP) |
3500 mm |
|
Swivel Axis (OP) |
320° (±160°) |
|
Power Supply |
200–220 VAC ±10% 50/60 Hz |
|
Power Supply Equipment Capacity |
5.7 kVA |
|
Max. Power Consumption |
3.0 kW |
|
Breaker Capacity |
20 A |
|
Main Unit Air Consumption |
119.8 L/min |
|
Main Unit Weight |
1100 kg |
|
Controller |
STEC-520P Controller |
Standard Features
- Multi-stroke palletizer with flexible reach arrangements
- High payload capacity of up to 35 kg
- Compact footprint, requiring ~63% less space than articulated robots
- Easy-to-use pendant with touch panel interface
- Straight-line pallet flow for efficient multi-pallet use
- Handles up to 10 boxes per minute
Optional Features
- 2-pallet specification for sorting two pallet types
- Depalletizing transfer specification to six-wheel cart
- Robot hand suction system
- Servo hand option for precision handling
