PXW-1550 Robot Palletizer
PXW-1550
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
 Download
|
Technical Specs:

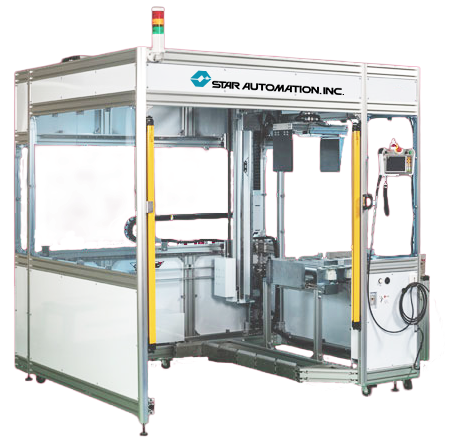

Star Automation’s PXW-1550 robotic palletizer is the heavy-duty model of the PXW Series, offering robust performance and high payload handling while maintaining a compact footprint. It delivers reliable throughput of up to 10 boxes per minute, making it a strong fit for demanding production lines across food, beverage, pharmaceutical, and cosmetics industries.
With flexible stroke arrangements, flow-line efficiency, and a space-saving design, the PXW-1550 reduces the floor space required for high-capacity palletizing compared to articulated robots. Explore its specifications below:
Every Star Automation palletizer comes with a customized implementation plan. Our engineers assist with installation, operator training, and ongoing support to ensure your system performs at peak efficiency. Standard and optional features for the PXW-1550 are listed below:
|
Normal Air Pressure |
0.5 MPa |
|
Max. Payload |
50 kg |
|
Vertical Axis Stroke (OP) |
1500 mm |
|
Crosswise Axis Stroke (OP) |
1250 mm |
|
Traverse Axis Stroke (OP) |
3500 mm |
|
Swivel Axis (OP) |
320° (±160°) |
|
Power Supply |
200–220 VAC ±10% 50/60 Hz |
|
Power Supply Equipment Capacity |
7.9 kVA |
|
Max. Power Consumption |
4.1 kW |
|
Breaker Capacity |
30 A |
|
Main Unit Air Consumption |
211.4 L/min |
|
Main Unit Weight |
1287 kg |
|
Controller |
STEC-520P Controller |
Standard Features
- Heavy-duty multi-stroke palletizer with high payload capacity
- Handles payloads up to 50 kg
- Compact design saves up to 63% floor space compared to articulated robots
- User-friendly touch panel control
- Flow-line efficiency for multi-pallet operations
- Processes up to 10 boxes per minute
Optional Features
- 2-pallet specification for sorting different pallet types
- Depalletizing transfer specification to six-wheel cart
- Robot hand suction system
- Servo hand option for precise handling
