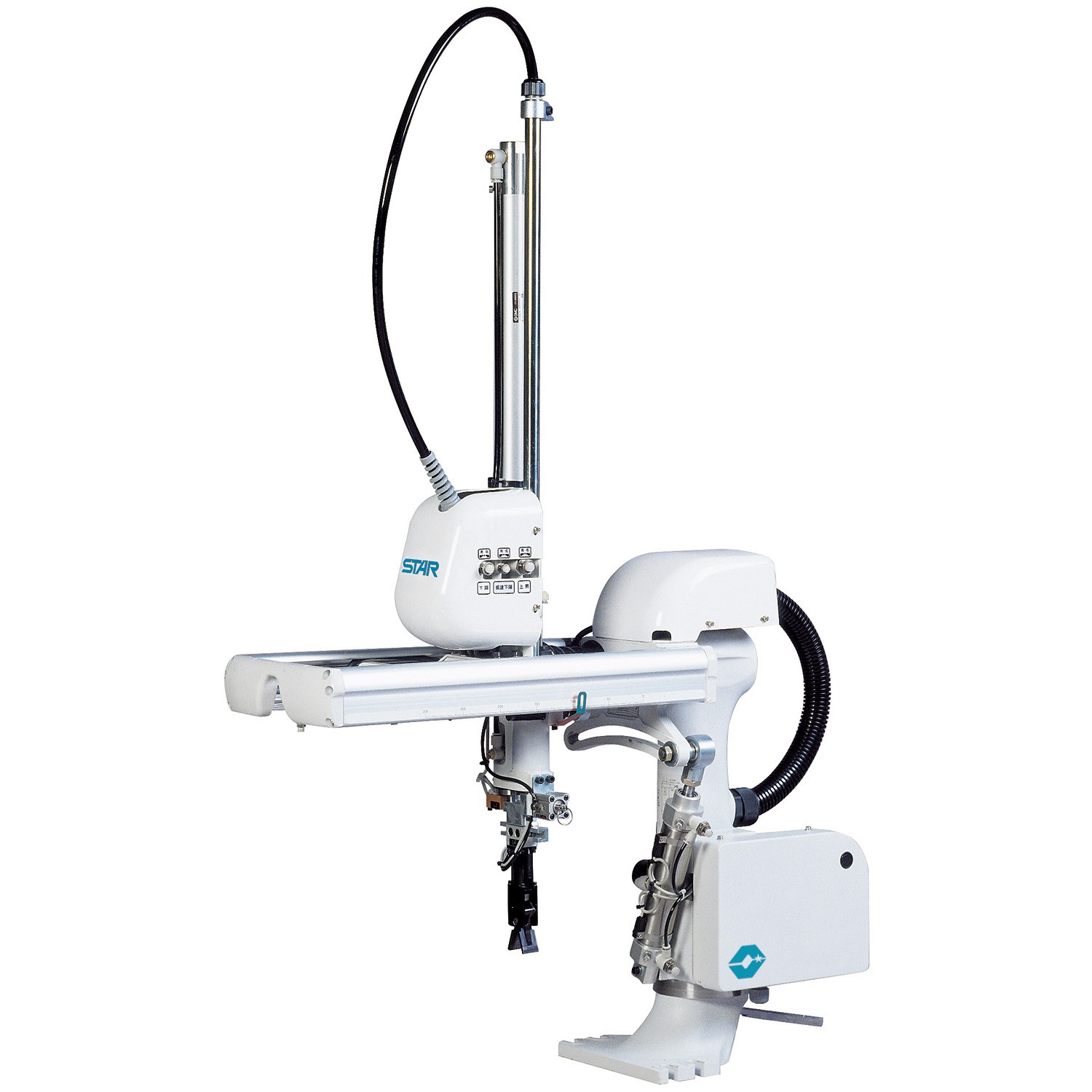

Sprue Picker Automatic Unloader
View Full Image
Robot Model Vertical Stroke (mm) Range of IMM (Ton) Swing Angle Crosswise Stroke (mm)
XQ-450V 450 25-100 75
XQ-600V 600 80-180 75
XQ-800V 800 160-350 100

Sprue Picker

Vertical Stroke (mm):
450
Range of IMM (Ton):
25-100
Swing Angle:
Crosswise Stroke (mm):
75
Vertical Stroke (mm):
600
Range of IMM (Ton):
80-180
Swing Angle:
Crosswise Stroke (mm):
75
Vertical Stroke (mm):
800
Range of IMM (Ton):
160-350
Swing Angle:
Crosswise Stroke (mm):
100

Star Automation’s swing type sprue picker XQ-V Series consists of a simple and compact design, realized by eliminating unnecessary wirings and piping. It includes an E-stop switch for safe operation located on the easy-to-use operation pendant. The change of release side is easier than ever, and has a mold change memory that can operate on up to 15 different molds.

Other features include:

  • Crosswise unit with a scale
  • Slide adjustment function on chucking area

Click on each respective sprue picker robot model for further specifications:

Contact Star Automation today for further information on our world class sprue pickers, or to place an order.
