Pallet Changer for IMM Plastics
View Full Image

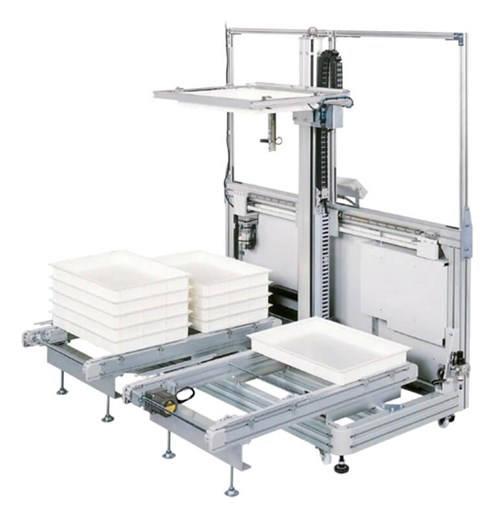

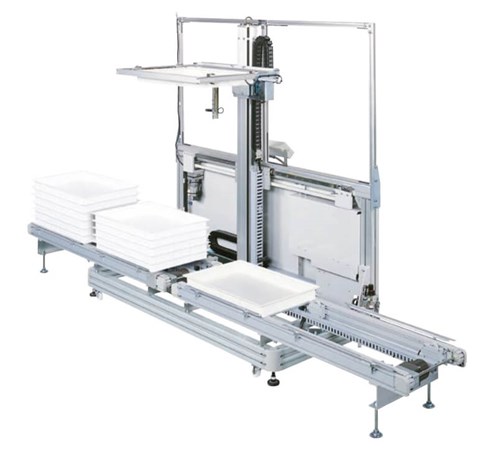

Pallet Changer I/M

Download

Star Automation’s total FA system Pallet Changer I/M is a robot link module for parts processing and assembly robot lines. Its container replacement period is 11 seconds, while its maximum loading weight of container is 7kg. Its maximum stacking weight is 70 kg, using FA container type, F-70 and F40I (25H-125H).

Other available features:

  • Vertical axis and container boxing position are numerically controlled for higher accuracy,
  • Automatic boxing operation can be achieved easily by linking this equipment with a traverse type automatic unloader.
  • Has a numerically controlled vertical axis, giving it the flexibility to work in conjunction with pallets of various depths.
  • A buffer conveyor and warning lamp are equipped as standard.
  • It includes a pendant type panel for easy operation.

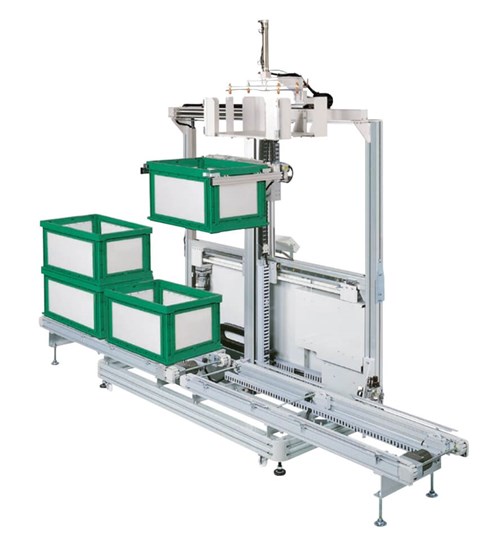

Pallet Changer IP/MP

Download

Star Automation’s total FA system pallet changer IP/MP provides varied usage with deep containers (PATACON). Its container replacement period is 20 seconds, with a maximum loading weight of container of 15 kg. The maximum stacking weight is 70kg, and uses PATACON containers M-40 and M-70.

Other features include:

  • Sheet supply unit installed, realizes stacking in deep containers.
  • Increased loading capacity (double of FA container specification).

Pallet Changer C

Download

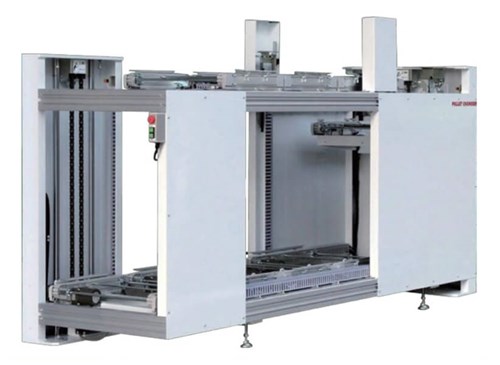

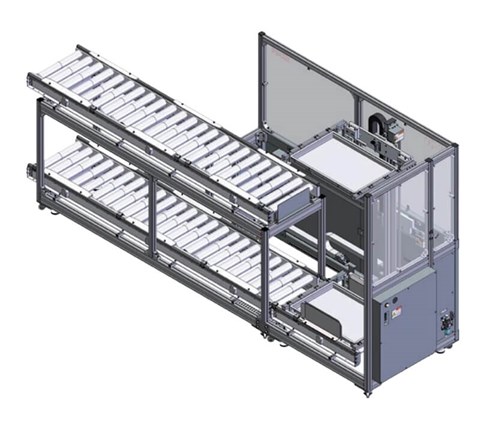

Star Automation’s total FA system pallet changer C-70 promotes the automated factory operation by linking with AGV. Its container replacement period is 4 seconds, with a maximum loading weight of container of 7kg. The maximum stacking weight is 50kg, and uses container type F70 25H-125H with a length of 622mm, width of 417mm, and height of 42mm-140mm.

Other features include:

  • The double-decked-container-flow provides saved floor space and longer automated operation.
  • Container delivery and removal operation is done at the same position, allowing for an easier equipment arrangement for a better material flow.
  • Pendant type panel for easy operation.



Contact Star Automation today for further information on our world class sprue pickers, or to place an order.
