PXT-1220A Robot Palletizer
PXT-1220A
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
 Download
|
Technical Specs:

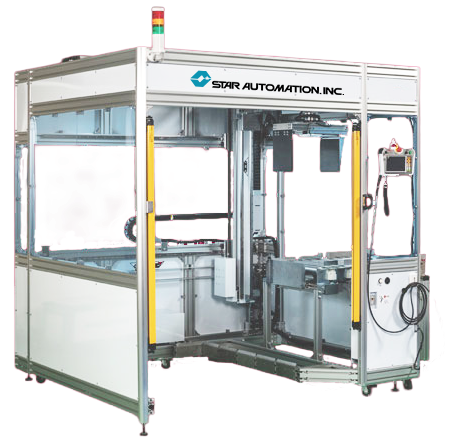

Star Automation’s PXT-1220A robotic palletizer is engineered for low overall heights, efficiently utilizing minimal floor space while maintaining high throughput. Designed for end-of-line automation, the PXT-1220A helps manufacturers reduce manual labor, improve logistics, and streamline palletizing operations. With the ability to process up to 8–10 boxes per minute, this model ensures reliable and efficient performance in industries such as food, pharmaceuticals, beverages, and cosmetics.
The PXT-1220A supports T11–T14 pallet types, handles package sizes up to A3 format (450 × 310 mm), and is designed with casters for easy movement across production floors. Click the model PDF for a full list of specifications.
All robotic palletizers from Star Automation include a customized implementation plan. Our team of experienced engineers will assist throughout installation and training to ensure a smooth transition to automation. We also help you determine the best options for your facility. Standard and optional features for the PXT-1220A are listed below:
|
Normal Air Pressure |
0.5 MPa |
|
Max. Payload |
20 kg |
|
Vertical Axis Stroke (OP) |
1200 mm |
|
Crosswise Axis Stroke (OP) |
900 mm |
|
Traverse Axis Stroke (OP) |
1500 mm |
|
Swivel Axis (OP) |
±160° |
|
Power Supply |
200–220 VAC ±10% 50/60 Hz |
|
Power Supply Equipment Capacity |
2.1 kVA |
|
Max. Power Consumption |
1.2 kW |
|
Breaker Capacity |
15 A |
|
Main Unit Air Consumption |
15.2 L/min |
|
Main Unit Weight |
487 kg |
|
Control Types |
STEC-520PB |
Standard Features
- Compact, low-height design to fit facilities with limited ceiling clearance
- Casters for easy relocation and plant layout flexibility
- User-friendly pendant control with touch panel operation
- Handles A3 size packages (450 × 310 mm)
- Compatible with T11–T14 pallet types
- Reliable throughput of 8–10 boxes per minute
- Engineered for smooth pallet flow and reduced downtime
Optional Features
- Pallet feeder for continuous operation
- Depalletizing function
- Robot hand suction system
- Servo hand option for precise handling
