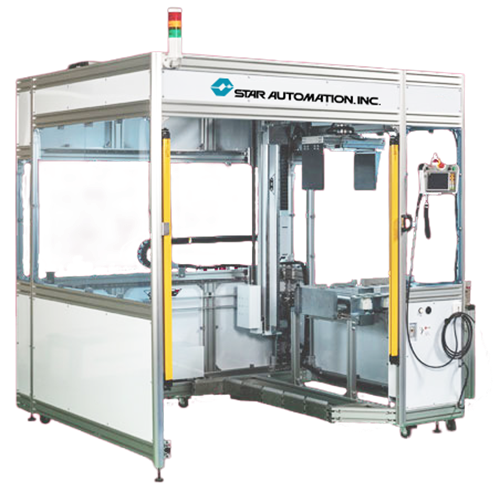

Compact Robotic Palletizing for Flexible Production Lines

PXT Series palletizers process approximately 8 to 10 boxes per minute for reliable end-of-line throughput. The systems accommodate T11 through T14 pallets and packages measuring up to A3 size, providing flexibility across food, beverage, pharmaceutical, cosmetics and other manufacturing applications. Integrated casters also allow facilities to reposition the equipment as production layouts or operating requirements change.

Robot ModelsVertical
Stroke (mm)
Range of
IMM (Ton)
Traverse
Stroke (mm)
Crosswise
Stroke (mm)
Spec
Sheets
PXT-1220A 1200   1500 900 Download
PXT-1220+ 1200   1800 1000 Download
PXT-1235 1200   1400 1000 Download

PXT Series Technical Specifications

PXT Series palletizers combine a compact footprint, programmable controls and flexible package handling for streamlined end-of-line automation. Available options expand the system for pallet feeding, depalletizing and specialized gripping requirements. Multiple stroke configurations also allow manufacturers to adapt each model to varied stacking heights and pallet arrangements.

  • Payload capacities from 20 to 35 kg
  • Vertical stroke options up to 1700 mm
  • Crosswise stroke options up to 1000 mm
  • Traverse strokes from 1400 to 1800 mm
  • Processes approximately 8 to 10 boxes per minute
  • Handles packages up to 450 × 310 mm
  • Compatible with T11 through T14 pallets
  • Integrated casters for easier relocation
  • Optional pallet feeder and depalletizing function
  • Optional suction and servo hand attachments
