PXW-1420 Robot Palletizer
PXW-1420
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
 Download
|
Technical Specs:

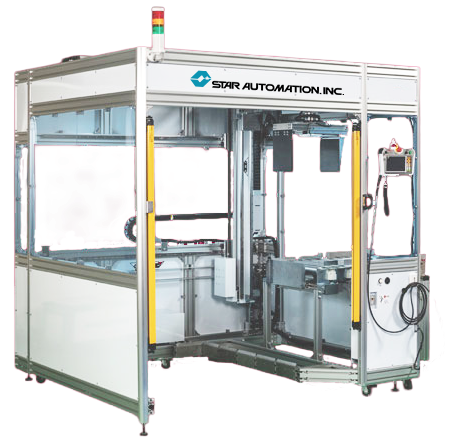

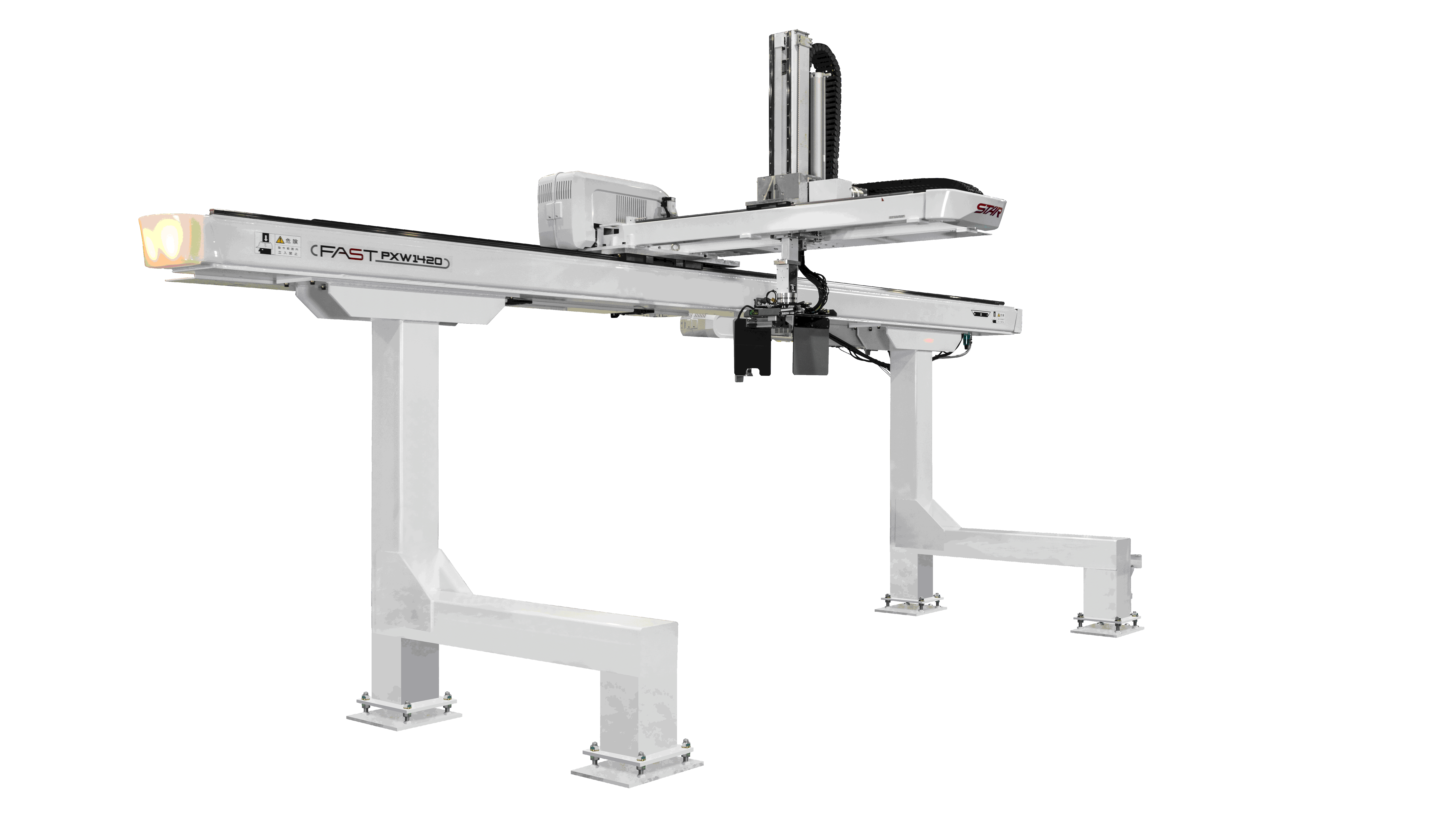

Star Automation’s PXW-1420 robotic palletizer is a multi-stroke system engineered for flexible layouts and high payload performance in compact spaces. It streamlines end-of-line operations by reducing manual handling, improving logistics flow, and maintaining consistent throughput. With a rate of up to 10 boxes per minute, the PXW-1420 is ideal for facilities in food, beverage, pharmaceutical, cosmetics, and other high-mix industries.
The PXW-1420 features a flexible stroke arrangement that fits into small spaces while preserving payload capacity, and its straight flow line supports efficient operation—even when working with multiple pallets. Explore the key specifications below.
All Star Automation palletizers include a tailored implementation plan. Our engineering team supports installation, training, and optimization to ensure a smooth transition to automation. Standard and optional features for the PXW-1420 are listed below:
|
Normal Air Pressure |
0.5 MPa |
|
Max. Payload |
20 kg |
|
Vertical Axis Stroke (OP) |
1400 mm |
|
Crosswise Axis Stroke (OP) |
1000 mm |
|
Traverse Axis Stroke (OP) |
3500 mm |
|
Swivel Axis (OP) |
320° (±160°) |
|
Power Supply |
200–220 VAC ±10% 50/60 Hz |
|
Power Supply Equipment Capacity |
5.5 kVA |
|
Max. Power Consumption |
2.9 kW |
|
Breaker Capacity |
20 A |
|
Main Unit Air Consumption |
91.5 L/min |
|
Main Unit Weight |
1093 kg |
|
Controller |
STEC-520P Controller |
Standard Features
- Multi-stroke palletizer design for flexible reach and patterning
- Compact footprint—requires ~63% less space than articulated robots
- User-friendly touch-panel pendant for easy operation and training
- Straight flow-line operation for efficient multi-pallet handling
- Throughput up to 10 boxes per minute
- Robust construction for consistent, precise palletizing
Optional Features
- 2-pallet specification for sorting two pallet types
- Depalletizing transfer specification for moving goods to a six-wheel cart
- Robot hand suction system
- Servo hand option for precise handling
