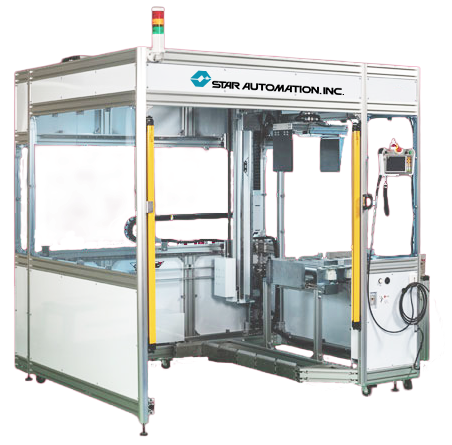

PXT-1235 Robot Palletizer
PXT-1235
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
 Download
|
Technical Specs:
Star Automation’s PXT-1235 robotic palletizer is built for higher payload requirements while maintaining the PXT Series’ compact, low-height design. Engineered to streamline end-of-line palletizing, the PXT-1235 offers consistent performance, reduced labor demand, and improved logistics. With a throughput of 8–10 boxes per minute, it is ideal for facilities in industries such as food, beverages, pharmaceuticals, and cosmetics.
The PXT-1235 supports T11–T14 pallet types, accommodates A3 packages up to 450 × 310 mm, and integrates casters for mobility across plant layouts. See full specifications below:
All Star Automation palletizers include a tailored implementation plan, supported by our engineers to ensure smooth installation, training, and ongoing optimization. Standard and optional features for the PXT-1235 are listed below:
|
Normal Air Pressure |
0.5 MPa |
|
Max. Payload |
35 kg |
|
Vertical Axis Stroke (OP) |
1200 mm |
|
Crosswise Axis Stroke (OP) |
1000 mm |
|
Traverse Axis Stroke (OP) |
1400 mm |
|
Swivel Axis (OP) |
320° (±160°) |
|
Power Supply |
200–220 VAC ±10% 50/60 Hz |
|
Power Supply Equipment Capacity |
8.9 kVA |
|
Max. Power Consumption |
4.6 kW |
|
Breaker Capacity |
30 A |
|
Main Unit Air Consumption |
163.8 L/min |
|
Main Unit Weight |
1044 kg |
|
Controller |
STEC-520P Controller |
Standard Features
- Compact design optimized for low ceiling environments
- High payload capacity of up to 35 kg
- Casters for easy relocation within plant layouts
- Handles A3 size packages (450 × 310 mm)
- Supports pallet types T11–T14
- Processes 8–10 boxes per minute
- Stable, precise palletizing performance for heavy loads
Optional Features
- Pallet feeder for continuous operation
- Depalletizing function
- Robot hand suction system
- Servo hand option for precise handling
