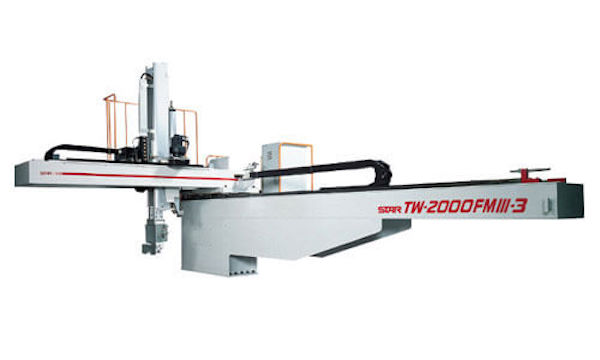

TW-2000FMIII Injection Molding Servo Robots
TW-2000FMIII
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
| 2000 | 1600-2500 | 3600 | 1600 |
 Download
|
Technical Specs:
Star Automation’s TW-FMIII Series servo motor-driven automatic unloaders are manufactured to increase the efficiency and quality of your factory’s automation. Equipped with easy to operate, high-performance pendants the TW-FMIII Series servo robots can be operated by anyone once properly trained. Star Automation will help you find the model best suited for you, then provide industry-best customer service and maintenance beyond the sale.
See product PDF for full spec details and diagram.
|
Power Source |
AC200 ±10% 50/60Hz |
|
Air Pressure |
0.49MPa (5kgf/cm2) |
|
Drive System |
AC SERVO MOTOR IM SERVO MOTOR AIR CYLINDER |
|
Posture (air cylinder) |
90° FIXED |
|
Max. Load, Incl. Chuck Weight |
40kg (60kg) |
|
Posture Torque |
81.7N/m |
|
Control Types |
STEC-450 |
Product Extract Side
- Extraction from fixed mold
- Vacuum generator with sensing unit
- Mold release spray circuit
- Air blow circuit
- Extract circuit for under-cut mold
- Limit switch for product confirmation
- Product rotation
- Vertical Arm descent standby at product extract side
- Mold close during arm ascent
- Servo head ass-y for both posture and rotation
Overall Dimensions
|
|
TW-2000FMIII |
|
Overall Height |
108.82" (2764mm) |
|
Overall Width |
196.85" (5000mm) |
|
Traverse Stroke |
141.73" (3600mm) |
|
Overhang, release side |
27.56" (700mm) |
|
Cable Guide Overhang |
8.19" (208mm) |
|
Vertical Stroke |
78.74" (2000mm) |
|
Vertical Standby |
15.67" (398mm) |
|
Bottom of Crosswise to Chuck Mount Position |
29.98" (761.5mm) |
|
Crosswise arm |
93.70" (2380mm) |
|
Thickness |
23.62" (600mm) |
|
Crosswise Reach Max |
84.65" (2150mm) |
|
Crosswise Stroke Max |
62.99" (1600mm) |
|
Crosswise Standby Min |
21.65" (550mm) |
|
Platform at Rail Side Length |
72.72" (1847mm) |
|
Platform at Rail Side Width |
39.25" (997mm) |
|
Platform at Carriage Unit Side Length |
61.02" (1550mm) |
|
Platform at Carriage Unit Side Width |
19.69" (500mm) |
|
Base Offset |
0.39" (10mm) |
Traverse
- Detective product reject circuit
- Hinge circuit
- Delayed traverse
Product Release Side
- Air nipper in chuck
- Positioning 1-99
- Horizontal rotation
- Release products at two different points
Others
- Floppy disk drive for external memory
- I.M.M. Link operation
- Centralized lubrication unit w/Manual pump
- Centralized lubrication unit w/Auto pump
