STEC-520b Controller

Compatible Machines

Screen Size

• 7” Wide Screen Color LCD

Axis of Operation

• Capable of controlling up to 8 servo axis

Inputs

• 49 Standard Inputs (Factory)
• 18 Spare Inputs Available For Customized Programming Use (Factory)
• Up to 144 Expansion Inputs Available (Option)

Outputs

• 47 Standard Outputs (Factory)
• 18 Spare Outputs Available For Customized Programming Use (Factory)
• Up to 144 Expansion Outputs Available (Option)

Timers

• 100 Total Timers (73 Standard Timers + 20 User Timers + 7 Alarm Timers)

Axis Setting Points

• 80 Standard Points Per Axis
• 256x256x256 Standard Array Packaging (Up to 8 Stages)
• 860 Free Packaging Points (Up to 7 Stages)
• 100 NC User Programming Points Per Axis
• 164 NC User Programming Free Package Points

Counters (30 Total)

• 6 Option Counters
• 8 Standard Pack
• 8 Free Pack
• 1 Total Mold Cycle

• 1 Extract Quantity
• 1 Parts Packaged
• 1 Consecutive Rejects
• 1 Initial Reject

• 1 Sample Interval
• 1 Parts Rejected
• 1 Consecutive Rejects
• 1 Condition Write

Memory

• Micro SD (up to 999 molds, Various history, Program file)
• USB port (Program download, upload, History, Unlimited molds)

Network

• Ethernet Port
• PC Software Connection
• Operation Monitoring
• Email Notifications

Feature Highlights

Easy Operation Mode Selection:

Production Support:

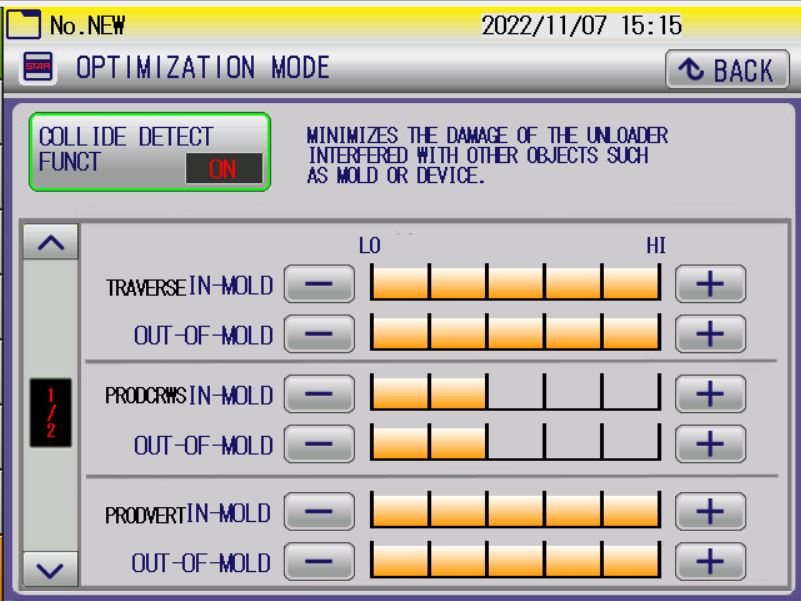

Optimization Modes:

Multi-Level Password Protection:

NC User Programming:

Vacuum Pressure Display:

Smart Vacuum Operation:

Arc Movement Smoothing Operation:

Approach Speed Switching:

Mold Condition File Settings:

Get in touch with a Star Automation representative for a quote on controllers and servicing.
