HMVII Servo Motor Automatic Unloader
View Full Image
Robot Model Vertical Stroke (mm) Range of IMM (Ton) Traverse Stroke (mm) Crosswise Stroke (mm)

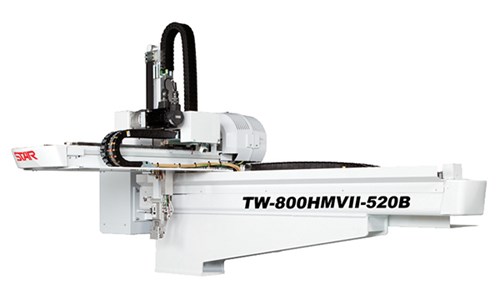

TW(S)-800HMVII 800 80-250 1600 680

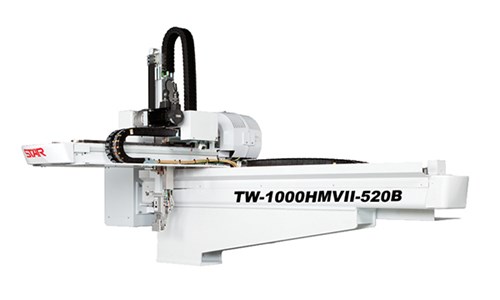

TW(S)-1000HMVII 1050 80-350 1800 680

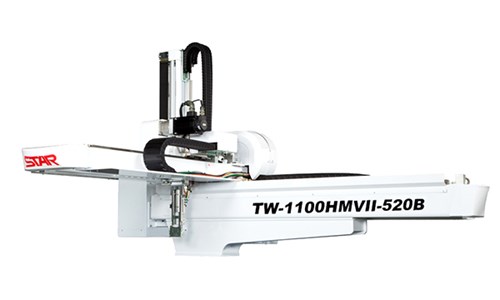

TW(S)-1100HMVII 1200 250 450 1130

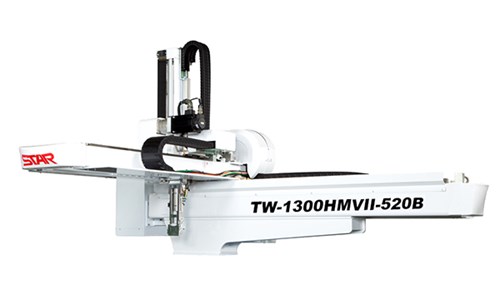

TW(S)-1300HMVII 1400 350-600 2000 1130

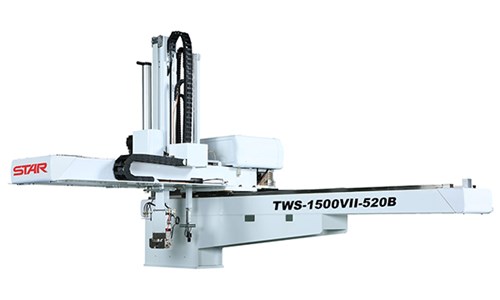

TW(S)-1500HMVII 1600 450-750 2200 1130

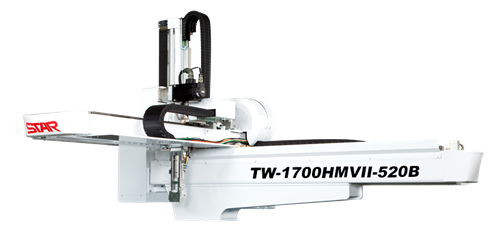

TW(S)-1700HMVII 1800 550-1000 2500 1130

HMVII Series

Vertical Stroke (mm):
800
Range of IMM (Ton):
80-250
Traverse Stroke (mm):
1600
Crosswise Stroke (mm):
680
Vertical Stroke (mm):
1050
Range of IMM (Ton):
80-350
Traverse Stroke (mm):
1800
Crosswise Stroke (mm):
680
Vertical Stroke (mm):
1200
Range of IMM (Ton):
250
Traverse Stroke (mm):
450
Crosswise Stroke (mm):
1130
Vertical Stroke (mm):
1400
Range of IMM (Ton):
350-600
Traverse Stroke (mm):
2000
Crosswise Stroke (mm):
1130
Vertical Stroke (mm):
1600
Range of IMM (Ton):
450-750
Traverse Stroke (mm):
2200
Crosswise Stroke (mm):
1130
Vertical Stroke (mm):
1800
Range of IMM (Ton):
550-1000
Traverse Stroke (mm):
2500
Crosswise Stroke (mm):
1130

Star Automation’s HMVII Series of high speed automatic unloaders are manufactured to substantially increase the quality and efficiency of your factory’s automation. With standard features including:

  • Grease Cover
  • Sprue grip circuit
  • Mold close during ascent
  • Arm descent during mold open
  • Central lubrication with manifold
  • Absolute encoders
  • And more

The HMVII Series also boasts the STEC-480 high performance pendant. With easy operation, extensive optional functions, industry leading safety features, an energy saving function, and superb eco-friendliness, the HMVII Series of servo motor driven robots is second to none. Star Automation will find the perfect HMVII Series model best suited for your IMM plastics operation’s needs and provide industry best customer service and maintenance beyond the sale.

The HMVII Series consists of a variety of models with a range of IMM in tons from 80-250 to 550-1000. Click on each respective model for a full list of specifications.

For more information or a free quote on a HMVI Series servo motor driven robot, contact Star Automation today.

Star AutomationTechnical Specs:

  • Programmable Controllers
  • User Intuitive
  • Minimal training & support needed
  • Available worldwide 24/7
  • Robotic Arms
  • Efficient systems for the job
  • More output
  • Minimized operating costs
  • End of Arm Tooling (EOAT)
  • Precision picking & pulling
  • Custom to your set up
  • Engineered dependability
Not Sure What to look for? Get a Free Quote
