TW(S)-1500HMVII: Injection Molding Servo Robot for Sale

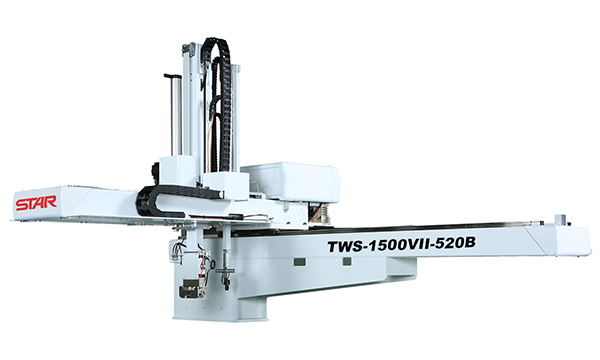

TW(S)-1500HMVIICartesian Take-out Robot

Vertical Stroke (mm)Range of IMM (mm)Traverse Stroke (mm)Crosswise Stroke (mm)
1600 mm 450-750 mm 2200 mm 1130 mm



Star Automation’s TW HMVII Series servo motor-driven automatic unloaders are manufactured to increase the efficiency and quality of your factory’s automation. Equipped with easy to operate, high-performance pendants the TW VII Series Cartesian Take-out robots can be operated by anyone once properly trained. Star Automation will help you find the model best suited for you, then provide industry-best customer service and maintenance beyond the sale.

Technical Specs

Technical Specs

See the product PDF for full spec details and diagram.

Power Source

200 VAC ± 10% 60 Hz

Air Pressure

70 psi (.48 MPa)

Drive

AC Servo Motor

Posture (air cylinder)

90°

Recommended Max Load

22 lbs (10 kg)

Posture Torque @ 70 PSI

40.6 ft-lbs (55.0 N•m)

Control Types

STEC-520b or STEC-620b



Standard Features

Standard Features

  • Vacuum Generator with Part Present Sensor
  • Part Grip Circuit
  • Sprue Grip Circuit
  • USB Port
  • Ethernet Port
  • Sample and Chuck Change Positions
  • Product Packaging (256 each axis)
  • CNC Step Programming
  • Micro SD Card
  • CPC® and AMP® Connections at the Head
  • Active Vibration Control
  • IMM Mounting Weldment
  • Multi-Level Password Protection
  • Position, Speed and Timer Adjust in Auto
  • Alarm History
  • Grease Pocket LM Bearings

Overall Dimensions

Overall Dimensions



TW-1500HMVII

TWS-1500HMVII

Overall Height

71.42” (1814mm)

71.42” (1814mm)

Overall Width

145.04” (3684mm)

145.04” (3684mm)

Traverse Stroke

86.61” (2200mm)

86.61” (2200mm)

Overhang, Release Side

24.84” (631mm)

24.84” (631mm)

Cable Guide Overhang

0

0

(P) Vertical Stroke

62.99” (1600mm)

62.99” (1600mm)

(P) Vertical Standby

7.87” (200mm)

7.87” (200mm)

Bottom of Crosswise to Chuck Mount Position

14.57” (370mm)

14.57” (370mm)

Mold Mounting Face - Crosswise Arm End

67.17” (1706mm)

67.17” (1706mm)

Mold Mounting Face - Box End

27.72” (704mm)

27.72” (704mm)

(S) Vertical Standby

-

9.84” (250mm)

(P) Crosswise Reach Max

51.18” (1300mm)

51.18” (1300mm)

(P) Crosswise Stroke Max.

44.49” (1130mm)

38.98” (990mm)

(P) Crosswise Standby Min

6.69” (170mm)

12.20” (310mm)

(P) (S) Proximity Min.

-

9.84” (250mm)

(S) Crosswise Stroke Max

-

38.98” (990mm)

(S) Crosswise Standby Min

-

2.36” (60mm)

Base Offset

3.98” (101mm)

3.98” (101mm)

Box End - Crosswise Arm End

94.88” (2410mm)

94.88” (2410mm)



Options Available

Options Available

  • Additional Vacuum Generator with Part Present Sensor
  • Additional Part Grip
  • Nipper on Chuck
  • Rotation 90°, 180° 2-Position, 180° 3-Position
  • Shuttle on Tool
  • Mold Spray
  • Air Blow
  • 1-3 Color Alarm Light
  • Special Paint
  • Free Packaging
  • Central Lube
  • Quick Chuck Change
  • Servo Posture Wrist
