JSW

JSW Injection Molding Machines

Star Automation supports JSW injection molding machines with automation built for consistent part removal, efficient transfer and dependable downstream handling. Our lineup includes servo robots, sprue pickers, conveyors, pallet changers and Eins end-of-arm tooling for JSW presses ranging from compact all-electric models to ultra-large systems.

Our engineers can help identify the right equipment for your press, mold layout and production goals. Training, maintenance, repairs and technical support remain available after installation.

All Brands

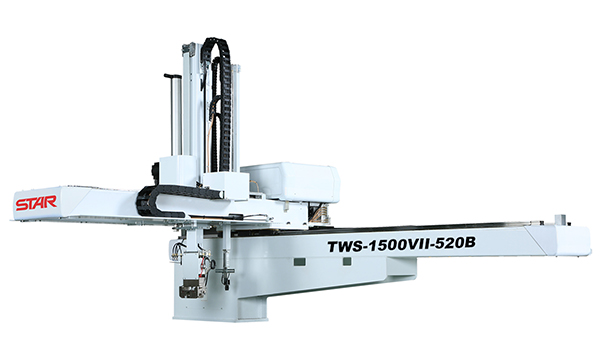

Servo Robots for JSW Injection Molding Systems

Star Automation servo robots give JSW molding operations precise control over part extraction and placement. Available models accommodate a wide range of press tonnages, stroke requirements and molded part sizes. Programmed movement supports repeatable transfer to conveyors, pallets, inspection stations or secondary processes while reducing manual intervention near the mold area.

Robot Series	Vertical Stroke (mm)	Range of IMM (Ton)	Traverse Stroke (mm)	Crosswise Stroke (mm)
TW VII Series	400-1800	20-40 to 900-2500	100-3000	340-1590
HMVII Series	800-1800	80-250 to 550-1000	450-2500	680-1130
LW VII Series	1050-1700	80-350 to 500-1000	1800-2500	770-1130
Ultra Large FMIV Series	2000-2500	1500-4000 to 2500-5000	3600-4000	1600-2000
SA Series	100-1400	40-100 to 450-750	1000-2200	440-1180
MHY VII Series	1500-1800	500-1300 to 900-2500	2500-3000	1590

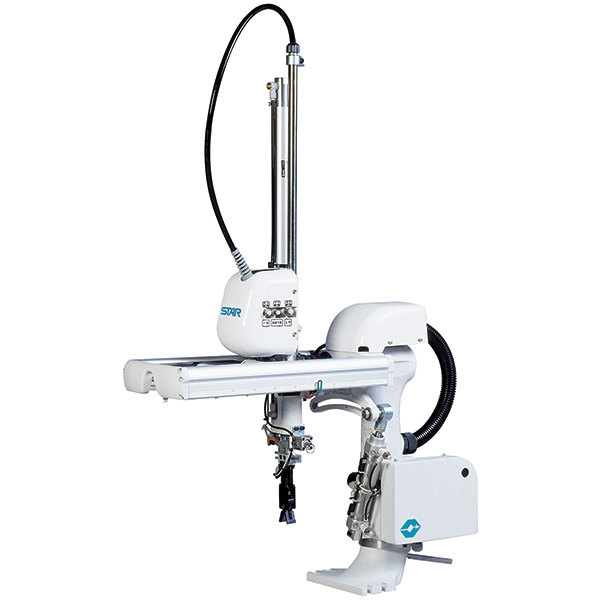

Sprue Pickers for JSW IMMs

Star Automation sprue pickers automate the removal of runners and excess material from JSW injection molding machines. Compact swing-arm designs fit easily into space-conscious cells and help keep operators away from repetitive mold-area tasks. Three XQ-V models cover press ranges from 30 to 350 tons. Stored mold settings simplify recurring jobs and support quicker changeovers.

Model	Vertical Stroke	Range of IMM	Crosswise Stroke
XQ-450V	450 mm	30-80 tons	75 mm
XQ-600V	600 mm	80-180 tons	75 mm
XQ-800V	800 mm	160-350 tons	100 mm

Conveyor Belt Systems for JSW IMMs

Conveyor systems carry molded components away from JSW presses and into cooling, sorting, inspection or packaging operations. Multiple lengths and belt widths allow each conveyor to fit varied part dimensions and production layouts. Adjustable height and tilt support alignment with nearby equipment. Variable-speed operation and indexing control help coordinate material flow with changing cycle requirements.

Model	Length	Belt Width	Conveyable Weight (Max)	Total Weight
SEC2000-3CCB	6’6’’ / 2000mm	11.8” / 300mm	110 lbs / 50 kg	90 lbs / 41 kg
SEC2000-4CCB	6’6’’ / 2000mm	15.8” / 400mm	110 lbs / 50 kg	97 lbs / 44 kg
SEC2000-5CCB	6’6’’ / 2000mm	19.7” / 500mm	121 lbs / 55 kg	103 lbs / 47 kg
SEC2000-6CCB	6’6’’ / 2000mm	23.6” / 600mm	121 lbs / 55 kg	110 lbs / 50 kg
SEC3000-3CCB	9’10” / 3000mm	11.8” / 300mm	110 lbs / 50 kg	103 lbs / 47 kg
SEC3000-4CCB	9’10” / 3000mm	15.8” / 400mm	121 lbs / 55 kg	112 lbs / 51 kg
SEC3000-5CCB	9’10” / 3000mm	19.7” / 500mm	121 lbs / 55 kg	121 lbs / 55 kg
SEC3000-6CCB	9’10” / 3000mm	23.6” / 600mm	132 lbs / 60 kg	128 lbs / 58 kg

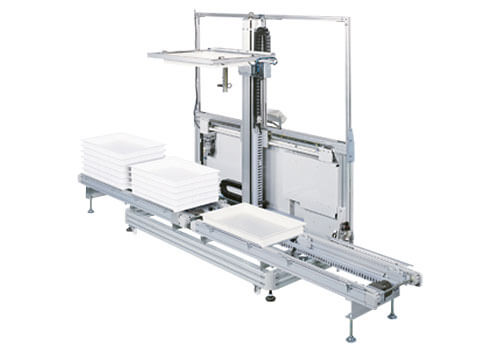

Pallet Changer Systems for JSW IMMs

Automatic pallet changers collect molded parts from JSW production cells and replace full containers with empty ones. Automated exchanges help reduce loading delays and limit repeated lifting during long production runs. Available models differ by replacement speed and weight capacity, giving manufacturers options for lightweight components, larger loads and varied output levels.

Model	Container Replacement Period	Loading Weight (Max)	Stacking Weight (Max)
Pallet Changer I/M	11 seconds	7 kg	70 kg
Pallet Changer IP/IM	20 seconds	15 kg	70 kg
Pallet Changer C	4 seconds	7 kg	50 kg

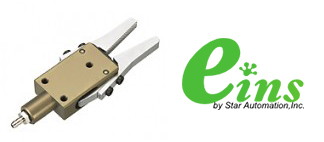

End of Arm Tooling (E.O.A.T.) for JSW IMMs

Eins end-of-arm tooling components help JSW users build custom robot assemblies around specific parts, molds and handling steps. Modular designs make it easier to combine gripping, suction, cutting, sensing and quick-change functions within one system. Broad component availability also supports faster tooling revisions, in-house repairs and future product changes.

Quick Chuck Change Parts	QCC Accessories	Suction Components
Gripping Components	Cutting Tools	Modular Framing Components
Tubing & Accessories	Sensors	Electronics

Contact Star Automation today

For more information or a free quote on automation robots for JSW brand IMMs.
