Crafted in USA
LW VII Series robots combine intuitive controls, dependable components and flexible programming for part extraction and downstream handling. Each three-axis gantry robot supports accurate movement across the X, Y and Z axes while helping manufacturers improve cycle efficiency. Multiple stroke lengths and payload capacities make the series suitable for a broad range of injection molding applications.
| Robot Models | Range of IMM (Ton) | Vertical Stroke (mm) | Crosswise Stroke (mm) | Traverse Stroke (mm) | Spec Sheets |
|---|---|---|---|---|---|

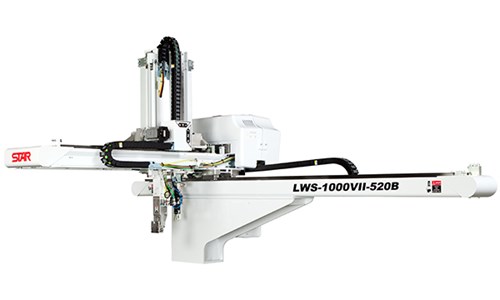

| LW(S)-1000VII | 80-350 | 1050 | 770 | 1800 | Download |

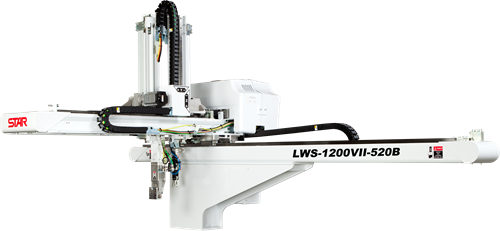

| LW(S)-1200VII | 80-450 | 1250 | 770 | 2000 | Download |

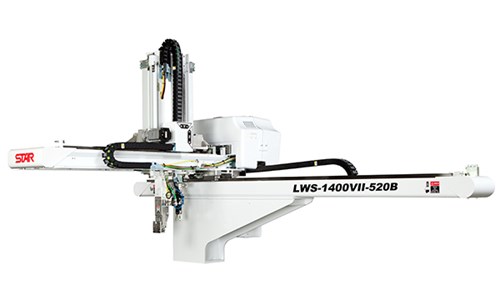

| LW(S)-1400VII | 300-750 | 1450 | 770 | 2200 | Download |

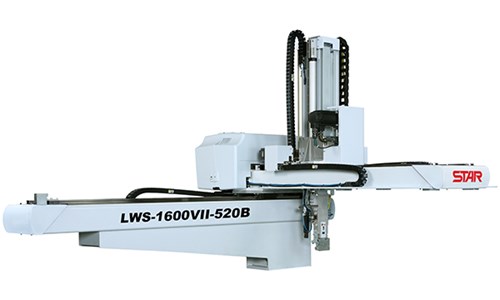

| LW(S)-1600VII | 500-1000 | 1700 | 1130 | 2500 | Download |
LW VII Series robots are built for straightforward programming, consistent part handling and efficient integration with injection molding equipment. User-friendly pendants help operators manage production settings with limited training, while programmable controls provide flexibility for varied applications. Durable robotic arms and compatible end-of-arm tooling help manufacturers reduce operating costs and maintain dependable performance.
For more information or a free quote on an LW Series servo-driven robot.
Star Automation manufactures the most sophisticated and user-friendly robotics on the planet.
