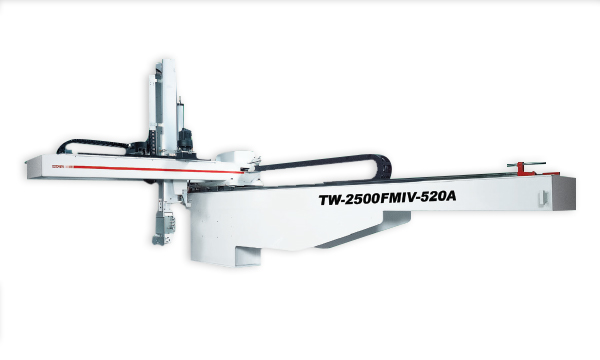

TW-2500FMIV Series Injection Molding Robot

Interested in this model?

Robot Models Vertical
Stroke (mm)
Range of
IMM (Ton)
Traverse
Stroke (mm)
Crosswise
Stroke (mm)
Spec
Sheets

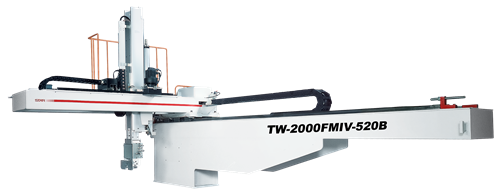

TW-2000 FMIV 2000 1500-4000 3600 1600 Download

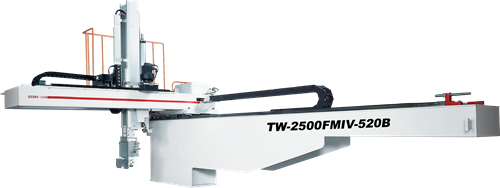

TW-2500FMIV 2500 2500-5000 4000 2000 Download
Vertical Stroke (mm):
2000
Range of IMM (Ton):
1500-4000
Traverse Stroke (mm):
3600
Crosswise Stroke (mm):
1600
Vertical Stroke (mm):
2500
Range of IMM (Ton):
2500-5000
Traverse Stroke (mm):
4000
Crosswise Stroke (mm):
2000

Interested in this model?

Technical Specs:

  • Programmable Controllers
  • User Intuitive
  • Minimal training & support needed
  • Available worldwide 24/7
  • Robotic Arms
  • Efficient systems for the job
  • More output
  • Minimized operating costs
  • End of Arm Tooling (EOAT)
  • Precision picking & pulling
  • Custom to your set up
  • Engineered dependability

The Ultra Large Series of automatic unloaders are manufactured to take on the biggest challenges in automated IMM plastics operations. As an unloader for ultra large-sized plastic injection presses, the drive system consists of an AC servo motor, IM servo motor, and an air cylinder. The Ultra Large Series includes two different models manufactured for simple operation to service ultra large-sized automated IMM plastic operations. Star Automation will help you find the model best suited for you, then provide industry best customer service and maintenance beyond the sale.

Our Ultra Large FMIV Series of robots consist of models with a range of IMM in tons from 1500-4000 to 2500-5000.

For more information or a free quote on an Ultra Large servo motor driven robot, contact Star Automation today.
