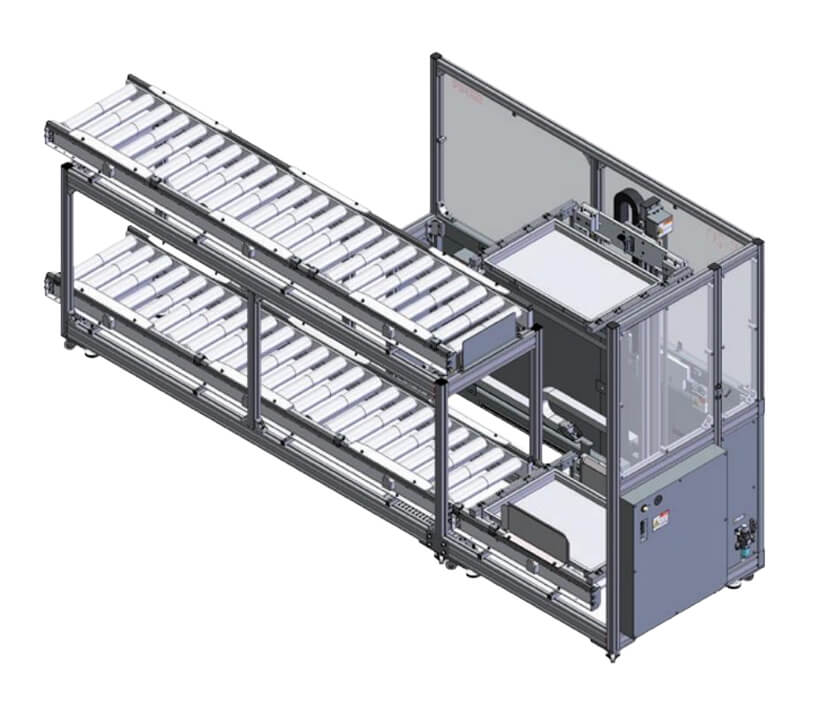

CF-70Pallet Changer
| Lifter Stroke | Slider Stroke | Container Weight Capacity | Max Stacking Height |
|---|---|---|---|
| 1240 mm | 850 mm | 7 kg | 505 mm |
Technical Specs
Technical Specs
See the product PDF for full spec details and diagram.
|
Driving Method |
AC Servo Motor, Air Cylinder |
|
Power Source |
AC 200~220V ± 10%, 3 Phase, 50/60Hz |
|
Electric Consumption |
1.7 KVA |
|
Air Pressure |
0.5 MPa |
|
Air Consumption |
0.53 NL/cycle |
|
Available Container |
F-40i (25H-125H) / F-70 |
|
Container Replacement Period |
6.7 seconds |
|
Maximum Loading Weight of Container |
7 kg |
|
Maximum Conveyance Weight |
50 kg |
|
Lifter Stroke |
1240 mm (specifiable to 1 mm) |
|
Container Maximum Stacking Height |
505 mm |
|
Slide Stroke |
850 mm (specifiable to 1 mm) |
|
Net Weight |
390.3 kg |
