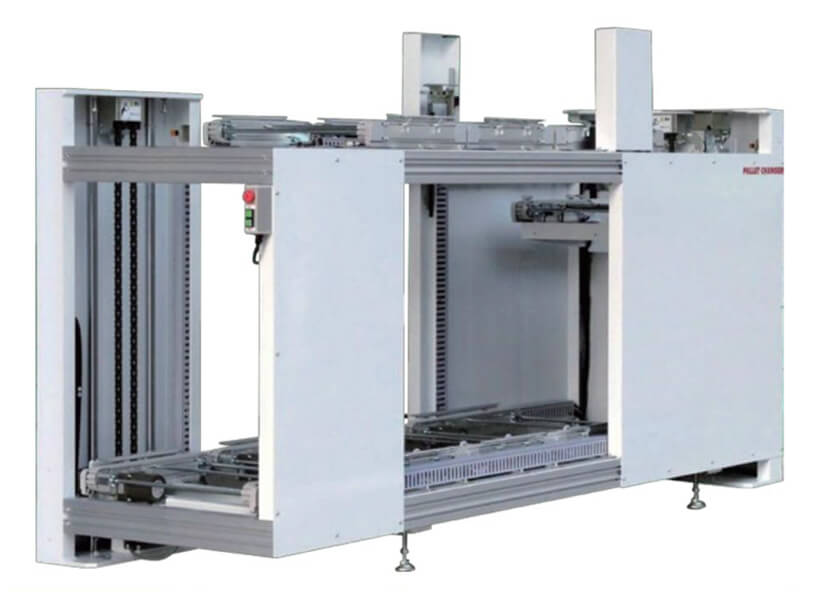

CT-70 LIIPallet Changer
| Container Replacement Period | Container Weight Capacity | Max Stacking Height |
|---|---|---|
| 7 seconds | 7 kg | 800 mm |
Star Automation’s total FA system pallet changer C-70 promotes the automated factory operation by linking with AGV. Its container replacement period is 4 seconds, with a maximum loading weight of container of 7kg. The maximum stacking weight is 50kg, and uses container type F70 25H-125H with a length of 622mm, width of 417mm, and height of 42mm-140mm.
Technical Specs
Technical Specs
See the product PDF for full spec details and diagram.
|
Driving Method |
AC Servo Motor, Air Cylinder |
|
Power Source |
200-220VAC±10%, 3 Phase, 50/60Hz |
|
Electric Consumption |
0.8kVA |
|
Air Pressure |
0.49MPa |
|
Air Consumption |
4NL/cycle |
|
Available Container |
F70 (25H-125H) |
|
Container Replacement Period |
7 seconds |
|
Maximum Loading Weight of Container |
7 kg |
|
Maximum Conveyance Weight |
50 kg |
|
Container Maximum Stacking Height |
800 mm |
|
Net Weight |
500 kg |
Standard Features
Standard Features
- The double-decked-container-flow provides saved floor space and longer automated operation.
- Container delivery and removal operation is done at the same position, allowing for an easier equipment arrangement for a better material flow.
- Pendant type panel for easy operation.
