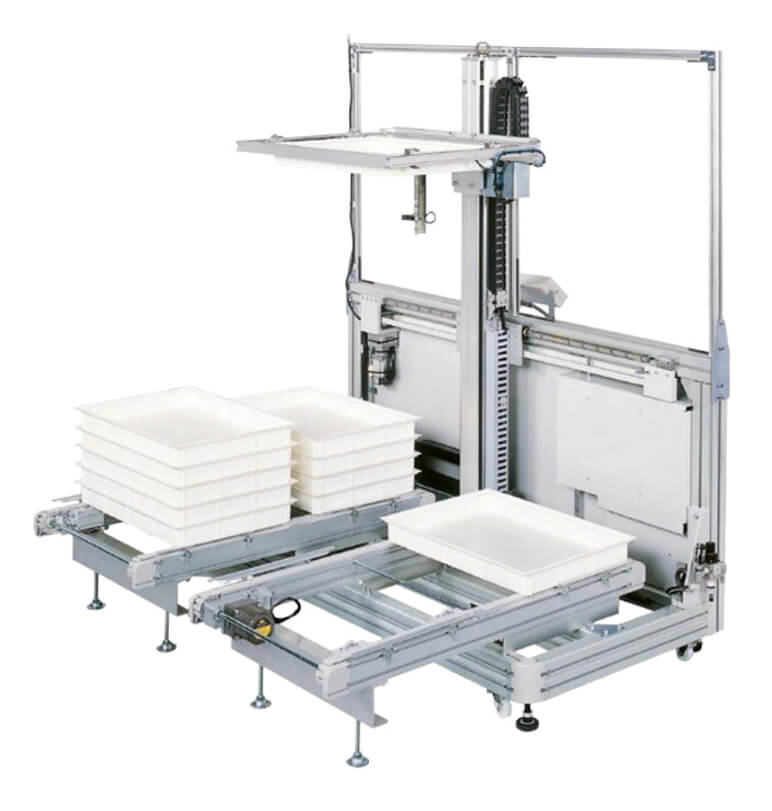

M-70IVSIIIPallet Changer
| Lifter Stroke | Slider Stroke | Container Weight Capacity | Max Stacking Height |
|---|---|---|---|
| 1240 mm | 850 mm | 7 kg | 1000 mm |
Star Automation’s total FA system Pallet Changer I/M is a robot link module for parts processing and assembly robot lines. Its container replacement period is 11 seconds, while its maximum loading weight of container is 7kg. Its maximum stacking weight is 70 kg, using FA container type, F-70 and F40I (25H-125H).
Technical Specs
Technical Specs
See the product PDF for full spec details and diagram.
|
I-40IVSIII |
I-70IVSIII | |
|---|---|---|
|
Driving Method |
AC Servo Motor, Air Cylinder |
AC Servo Motor, Air Cylinder |
|
Power Source |
200-220VAC±10%, 3 Phase, 50/60Hz |
200-220VAC±10%, 3 Phase, 50/60Hz |
|
Electric Consumption |
1 kVA |
1 kVA |
|
Air Pressure |
0.4 to 0.5 MPa |
0.4 to 0.5 MPa |
|
Air Consumption |
0.2 NL/cycle |
0.2 NL/cycle |
|
Available Container |
F-40i (25H-125H) |
F-70 |
|
Container Replacement Period |
10 seconds |
10 seconds |
|
Maximum Loading Weight of Container |
7 kg |
7 kg |
|
Maximum Conveyance Weight |
70 kg |
70 kg |
|
Lifter Stroke |
1240 mm (specifiable to 1 mm) |
1240 mm (specifiable to 1 mm) |
|
Container Maximum Stacking Height |
1000 mm |
1000 mm |
|
Slide Stroke |
850 mm (specifiable to 1 mm) |
850 mm (specifiable to 1 mm) |
|
Net Weight |
200 kg |
200 kg |
Standard Features
Standard Features
- Vertical axis and container boxing position are numerically controlled for higher accuracy,
- Automatic boxing operation can be achieved easily by linking this equipment with a traverse type automatic unloader.
- Has a numerically controlled vertical axis, giving it the flexibility to work in conjunction with pallets of various depths.
- A buffer conveyor and warning lamp are equipped as standard.
- It includes a pendant type panel for easy operation.
