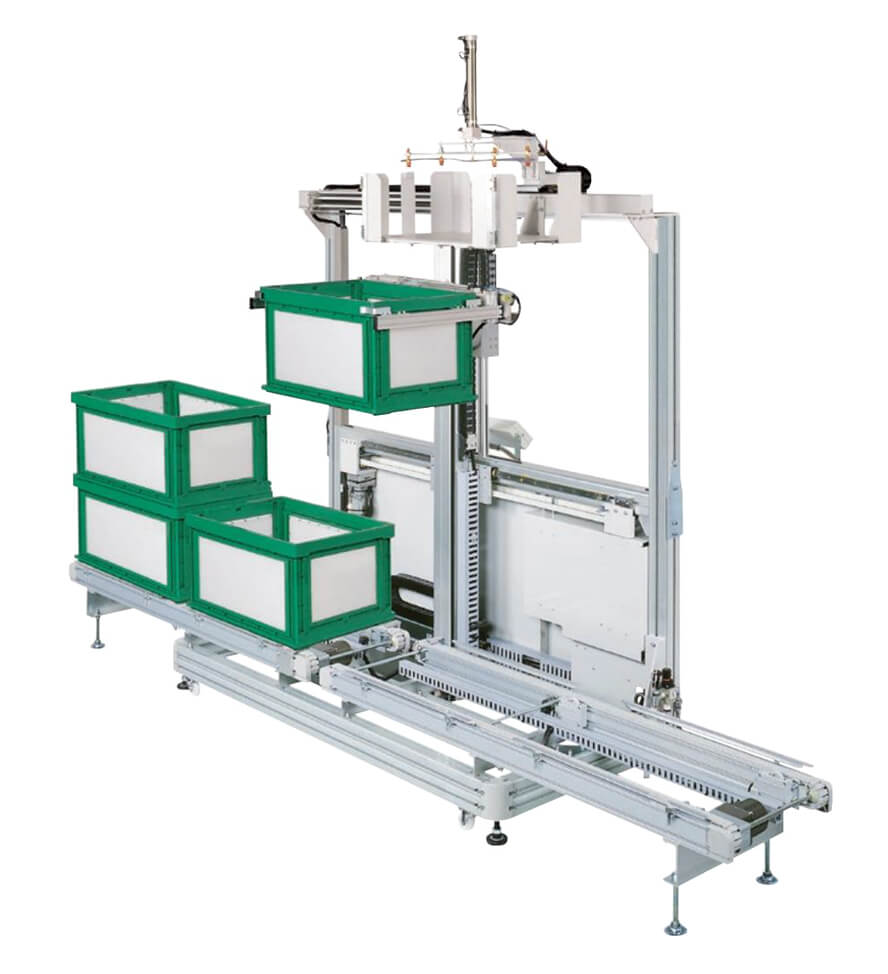

IP/MP-70IVSIIPallet Changer
| Lifter Stroke | Slider Stroke | Container Weight Capacity | Max Stacking Height |
|---|---|---|---|
| 1240 mm | 850 mm | 7 kg | 1000 mm |
Star Automation’s total FA system pallet changer IP/MP provides varied usage with deep containers (PATACON). Its container replacement period is 20 seconds, with a maximum loading weight of container of 15 kg. The maximum stacking weight is 70kg, and uses PATACON containers M-40 and M-70.
Technical Specs
Technical Specs
See the product PDF for full spec details and diagram.
|
Driving Method |
AC Servo Motor, Air Cylinder |
|
Power Source |
200-220VAC±10%, 3 Phase, 50/60Hz |
|
Electric Consumption |
1 kVA |
|
Air Pressure |
0.4 to 0.5 MPa |
|
Air Consumption |
0.2 NL/cycle |
|
Available Container |
F-40i (25H-125H) |
|
Container Replacement Period |
15 seconds |
|
Maximum Loading Weight of Container |
15 kg |
|
Maximum Conveyance Weight |
70 kg |
|
Lifter Stroke |
1240 mm (specifiable to 1 mm) |
|
Container Maximum Stacking Height |
1000 mm |
|
Slide Stroke |
850 mm (specifiable to 1 mm) |
|
Net Weight |
270 kg |
Standard Features
Standard Features
- Sheet supply unit installed, realizes stacking in deep containers.
- Increased loading capacity (double of FA container specification).
