TW(S)-1800VII-e Injection Molding Robot

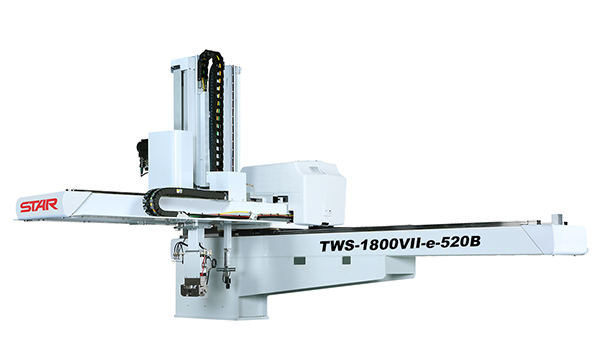

TWS-1800VII-e Click on Image to Enlarge

TW(S)-1800VII-e

SKU: _ccb3b678-8ffa-4742-9f2b-47bd25e15769
Download Model PDF
Range of IMM (Ton): Standard Traverse Stroke (mm) Crosswise Stroke (mm) Standard Vertical Stroke
650-1350 3000 1415 1800

TW(S)-1800VII-e

Star Automation’s TW VII Series servo motor driven automatic unloaders are manufactured to increase the efficiency and quality of your factory’s automation. Equipped with easy to operate, high-performance pendants the TW VII Series servo robots can be operated by anyone once properly trained. Star Automation will help you find the model best suited for you, then provide industry-best customer service and maintenance beyond the sale.

The TW VII Series consists of a variety of models with a range of IMM in tons from 40-100 to 900-2500. View the Model Pdf’s for full specifications.

Power Source

200 Vac  ± 10% 60 Hz

Air Pressure

70 psi

Drive

AC Servo Motor

Posture (air cylinder)

90°

Recommended Max Load

55 lbs (25 kg)

Posture Torque @ 70 PSI

81.1 ft-lbs (100 N•m)

Control Types

STEC-520A



Standard Features

  • Vacuum Generator with part present sensor
  • Part grip circuit
  • Spruce Grip Circuit
  • USB Port
  • Ethernet Port
  • Sample and Chuck Change positions
  • Product packaging (256 each axis)
  • CNC Step Programming
  • Micro SD
  • CPC® and AMP® Connections at the Head
  • Active Vibration Control
  • IMM Mounting Weldment
  • Multi-Level Password Protection
  • Position, Speed and Timer Adjust in Auto
  • Alarm History
  • Grease Pocket LM Bearings

Option List

  • Additional Vacuum Generator with Part Present Sensor
  •  Additional Part Grip
  •  Nipper on Chuck
  •  Rotation 90°, 180° 2-Position, 180° 3-Position
  •  Shuttle on Tool
  •  Mold Spray
  •  Air Blow
  •  1-3 Color Alarm Light
  •  Special Paint
  •  Free Packaging
  •  Central Lube
  •  Quick Chuck Change
  •  Servo Posture Wrist
  •  Servo Posture Rotate

Overall Dimensions



Overall Height

TW-1800VII-e


84.33” (2142mm)

TWS-1800VII-e


84.33” (2142mm)

Overall Width

160.71” (4082mm)

160.71” (4082mm)

Traverse Stroke

118.11” (3000mm)

118.11” (3000mm)

Overhang, Release Side

22.09” (561mm)

22.09” (561mm)

Cable Guide Overhang

0

0

(P) Vertical Stroke

70.87” (1800mm)

70.87” (1800mm)

(P) Vertical Standby

13.78” (350mm)

13.78” (350mm)

Bottom of Crosswise to Chuck Mount Position

17.72” (450mm)

17.72” (450mm)

Mold Mounting Face - Crosswise Arm End

73.15” (1858mm)

73.15” (1858mm)

Mold Mounting Face - Box End

29.60” (752mm)

29.60” (752mm)

(R) Vertical Standby

-

15.75” (400mm)

(P) Crosswise Reach Max

62.99” (1600mm)

62.99” (1600mm)

(P) Crosswise Stroke Max.

55.71” (1415mm)

49.02” (1245mm)

(P) Crosswise Standby Min.

7.28” (185mm)

13.98” (355mm)

(P) Proximity Min

-

11.02” (280mm)

(R) Crosswise Stroke Max

-

49.02” (1245mm)

(R) Crosswise Standby Min.

-

2.95” (75mm)

Base Offset

3.94” (100mm)

3.94” (100mm)

Box End - Crosswise Arm End

102.76” (2610mm)

102.76” (2610mm)
