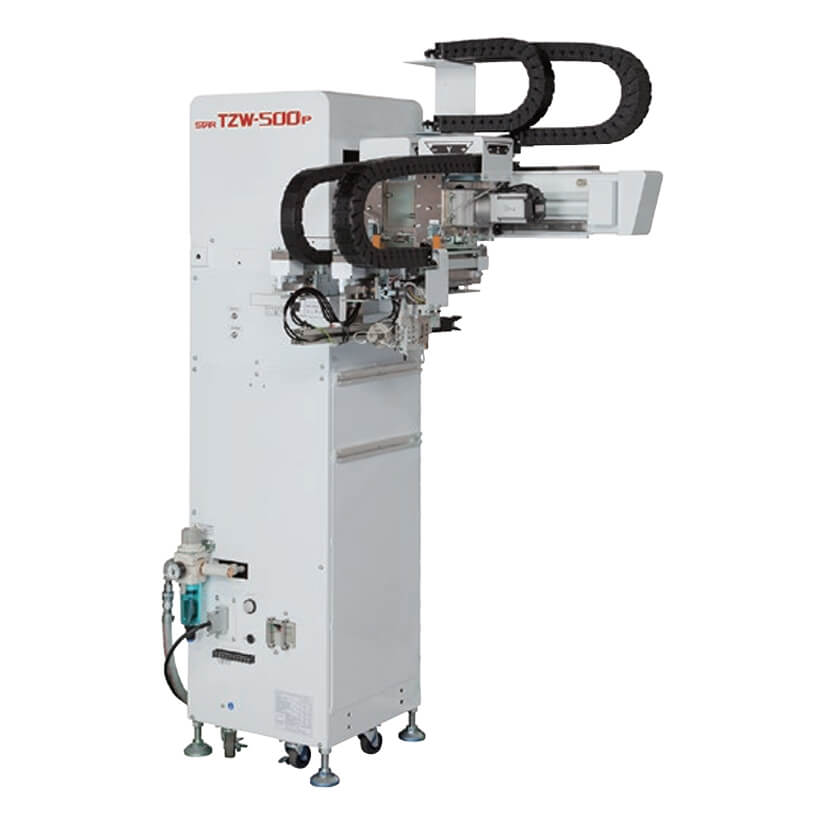

TZW-500PSide Entry Robot
| Product-Side Entry Stroke | Product-Side Crosswise Reach | Runner-Side Entry Stroke | Runner-Side Crosswise Reach |
|---|---|---|---|
| 500 mm | 64-364 mm | Not applicable | Not applicable |
Technical Specs
Technical Specs
See the product PDF for full spec details and diagram.
|
TZW-500P |
TZW-500SP | |
|---|---|---|
|
Power Source |
AC 200-220V ±10% (50/60Hz) |
AC 200-220V ±10% (50/60Hz) |
|
Operating Air Pressure |
0.5 MPa |
0.5 MPa |
|
Drive System |
AC Servo Motor |
AC Servo Motor |
|
Posture, Air Cylinder |
Fixed / 90° |
Fixed / 90° |
|
Required Electrical Capacity |
1.2 kVA |
2.4 kVA |
|
Maximum Power Consumption |
0.7 kW |
1.4 kW |
|
Air Consumption |
0.17 NL/cycle |
0.19 NL/cycle |
|
Control Box |
STEC-520B |
STEC-520B |
|
Maximum Load |
2 kg, including chuck |
2 kg, including chuck |
|
Posture Torque |
3.7 N•m |
3.7 N•m |
|
Product-Side Entry Stroke |
500 mm [750 mm optional] |
500 mm [750 mm optional] |
|
Runner-Side Entry Stroke |
Not applicable |
500 mm [750 mm optional] |
|
Product-Side Crosswise Reach |
64-364 mm |
173-338 mm |
|
Runner-Side Crosswise Reach |
Not applicable |
105-270 mm |
|
Main Body Net Weight |
148 kg |
171 kg |
|
Pendant Weight |
1.1 kg |
1.1 kg |
